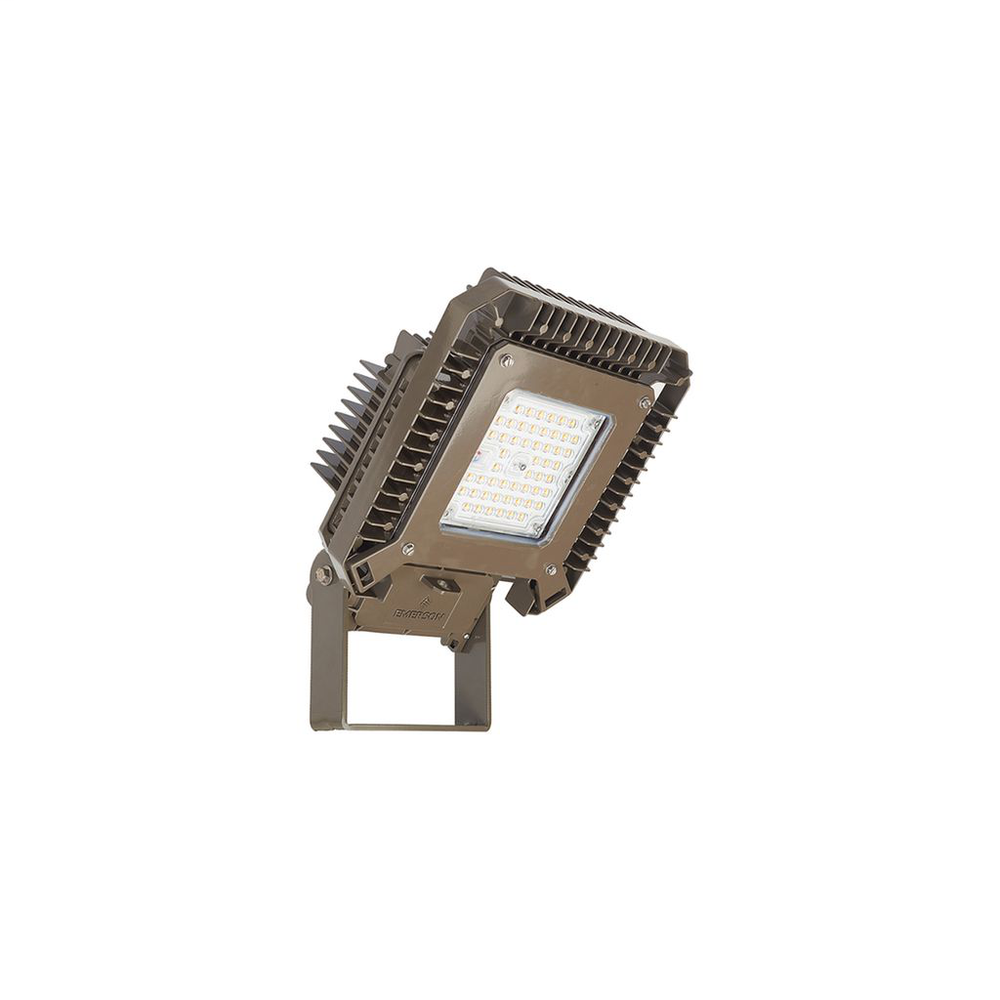

Appleton AMLED87YBU1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Description
Appleton AMLED87YBU1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Certifications and Compliances
- ATEX/IECEx Certifications and Compliances
- Zone 2, 22; Ex II 3GD; Ex ec llC T4; IP66; IK10
- NEC/CEC Certifications and Compliances
- Class I, Division 2, Groups A, B, C, D; Class I, Zone 2 Group IIC; Class II, Division 1 and 2, Groups E, F, G; Class III; Zone 20 and 21 Group IIIC; Zone 22, Group IIIB; Type 3R, 4, 4X, IP66/67; Simultaneous Exposure; Marine Outside Type (Salt Water) for USA ONLY; Wet Locations
Specifications
- Ambient Temperature
- -40 °C to +65 °C (-40 °F to +149 °F)
- Electrical
- 120-277 Vac 50/60 Hz, 170-300 Vdc or 347-480 Vac, 50/60 Hz
- Lumens to Watts
- 9,500 lumens is 175-250 W HID; 15,000 lumens is 250-400 W HID; 19,500 lumens is 400-750 W HID
- Standard Finishes
- Architectural bronze polyester housing, lens cover, visor and yoke mount
- Standard Materials
- Copperfree (4/10 of 1% max.) aluminum housing and lens door; silicone rubber gaskets; zinc plated HR steel yolk; stainless steel bolts, guard and safety cable; ; aluminum visor and (1) close up plug (provided)
