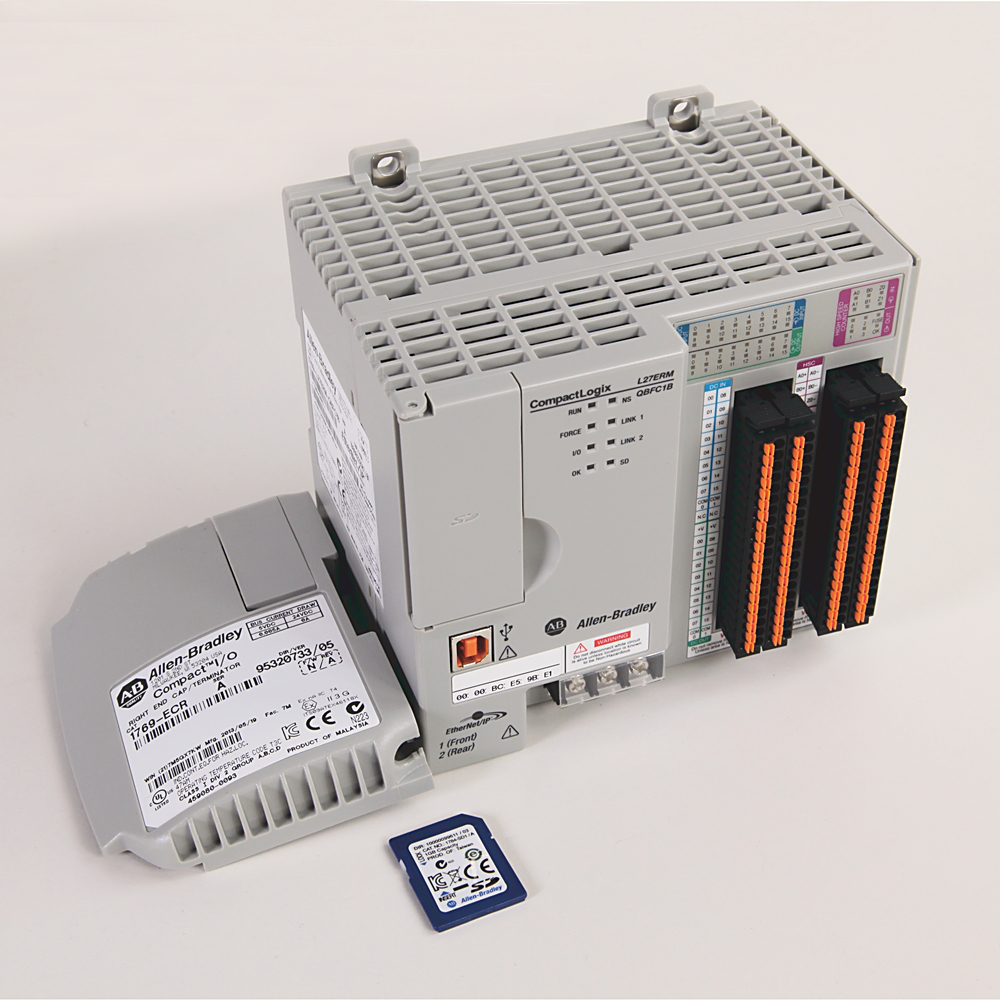

Allen-Bradley 1769-L27ERM-QBFC1B
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports with Device LevelRing Capability, 1MB Memory, 16 DC Onputs, 16 DC Outputs, 4 UniversalAnalog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/OExpansion Modules, 4 CIP Motion Axis With Kinematics Function, 16EtherNet/IP and 120 TCP Connections, 24V DC Embedded Power Supply, With1GB SD Card, Can Support Up To 2GB SD Card, 1 USB PortCompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports with Device Level Ring Capability, 1MB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 4 CIP Motion Axis With Kinematics Function, 16 EtherNet/IP and 120 TCP Connections, 24V DC Embedded Power Supply, With 1GB SD Card, Can Support Up To 2GB SD Card, 1 USB Port.
Allen-Bradley 1769-L27ERM-QBFC1B is now available from Williams Automation.
Williams Automation is NOT an authorized distributor for ALLEN BRADLEY / ROCKWELL AUTOMATION.
The Original Manufacturer's warranty does not apply and the product is used surplus.
This item does not include the following:
- A Rockwell Automation warranty.
- Licensed Rockwell Automation software and/or firmware.
- Rockwell Automation customer support.
- Rockwell Automation's quality assurance.
- Rockwell Automation's product safety and/or recall notes.
- Rockwell's Automation intellectual property indemnity.
- Does not come with a firmware license (if required).
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Accessories And Kits
- Network Media
- Male RJ45 to Male RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
Controllers
- CompactLogix 5370 L2 Controllers
- CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports with Device Level Ring Capability, 1MB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 4 CIP Motion Axis With Kinematics Function, 16 EtherNet/IP and 120 TCP Connections, 24V DC Embedded Power Supply, With 1GB SD Card, Can Support Up To 2GB SD Card, 1 USB Port.
Specifications
- Communication
- Ethernet , USB
- Depth
- 105mm, 4.13"
- Display
- Status LEDs
- Embedded Network Port
- 2 Ethernet
- Enclosure
- None (open-style)
- Height
- 118mm, 4.65"
- Input Signal
- 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance
- Isolation
- 30V (continuous), Basic Insulation Type, USB to system, Ethernet to system and Ethernet to Ethernet. Type tested at 500V AC for 60 s
- Local Programming Port
- USB/Ethernet
- Memory
- 0.75MB
- Mounting
- DIN Rail / Panel mount
- Non Volatile Memory Option
- Secure Digital
- Number Of Channels
- 42
- Operating Temperature
- 0...60 °C (32...140 °F)
- Output Signal
- 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA
- Power Supply
- 24V DC input, Isolated,Class 2/SELV
- Special Features
- Universal Analog Input
- Sub Brand
- CompactLogix
- Type
- Standard Controller
- Width
- 140mm, 5.51"
