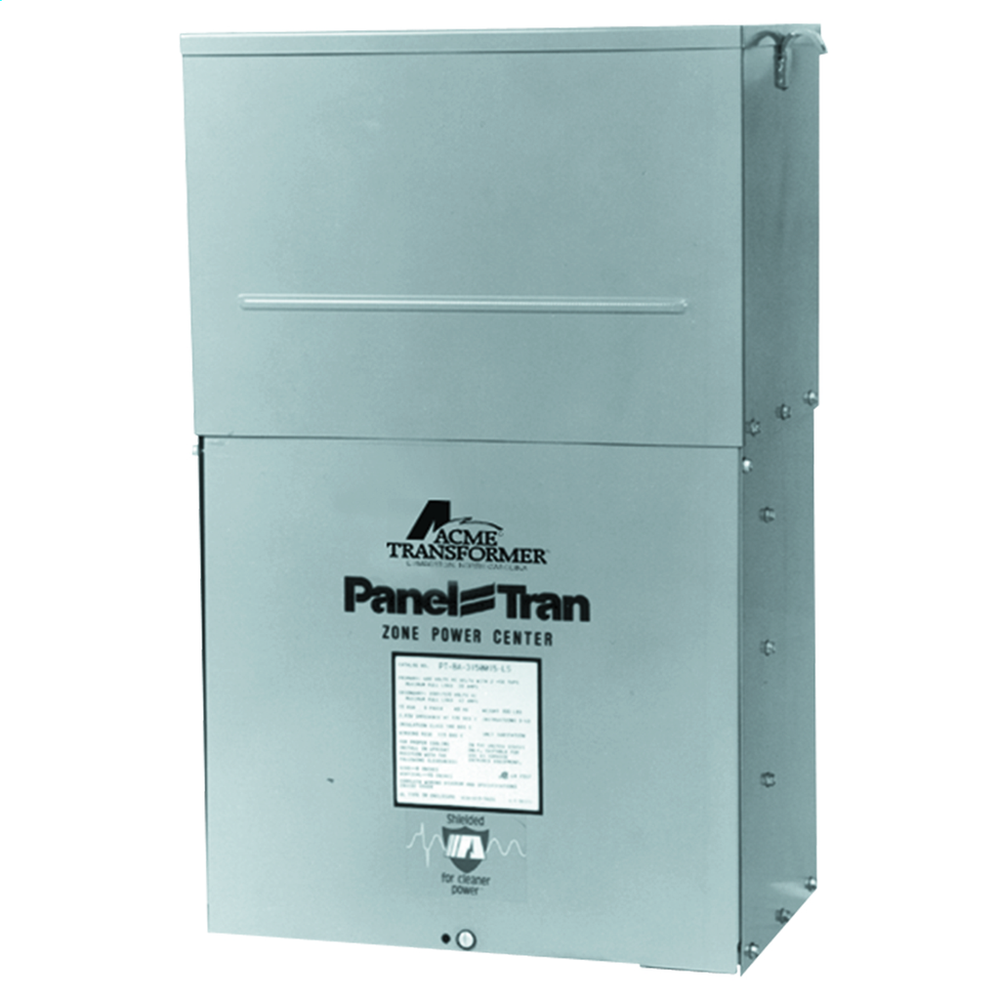

Acme Electric PTBB3150015SS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Acme Electric PTBB3150015SS is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- ANFC Taps
- -
- ARRA Compliant
- Contact Manufacturer
- Base Unit of Measure
- EA
- BNFC Taps
- 2
- Buy American Compliant
- Contact Manufacturer
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503090299
- Class Code
- D10
- Construction
- Encapsulated
- Country of Origin
- MX
- CSA Standard
- C22.2 No 47
- Dimensions
- 12.38 in x 22.13 in x 35.13 in
- Each - Width
- 22.13 in
- Electrostatic Shield
- Shielded
- Freight Class Code
- 06342001
- Frequency Rating
- 60 Hz
- Harmonization Code
- 8504320000
- Height
- 35.13 in
- Image Actual Or Representative
- R
- kVA
- 15.0
- Length
- 12.38 in
- Material type
- ZFIN
- Max Temperature Rise
- 115 Degrees Celsius
- Mounting
- Wall
- Mounting Type
- Wall
- Nema Rating
- NEMA 3R
- Primary Breaker
- ED43B040L (40A)
- Primary Voltage
- 480D V
- Product Category
- Panel-Tran Zone Power Centers
- Product Type
- Panel-Tran Zone Power Centers
- Secondary Breaker
- B350H (50A)
- Secondary Voltage
- 208Y/120 V
- Size
- 12.38 in x 22.13 in x 35.13 in
- Stock Indicator
- N - Non-stock
- Sub Class Code
- D10D180
- Taps % Steps
- 5%
- UL Insulation Class
- 180°C
- UL Standard
- UL 1062
- Weight
- 385 lb.
- Width
- 22.13 in
- Winding Material
- CU
Williams Automation sells Acme Electric parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
