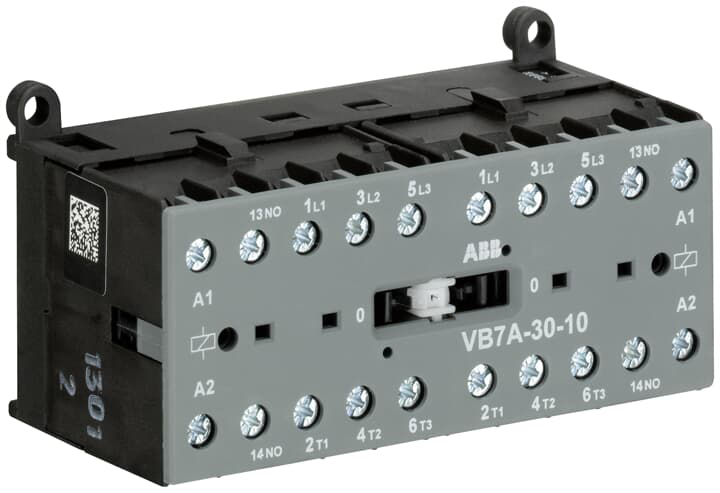

ABB VB7A-30-10-84
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The VB7A-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and mechanical interlock and safety blocking. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 5.5 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.VB7A-30-10-84 Mini Reversing Contactor 110 ... 127 V AC - 3 NO - 0 NC - Screw Terminals
ABB VB7A-30-10-84 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371009
- ETIM 4
- EC000066 - Magnet contactor, AC-switching
- ETIM 5
- EC000010 - Starter combination
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 46.7 mm
- Product Net Height
- 57.5 mm
- Product Net Weight
- 0.355 kg
- Product Net Width
- 96.2 mm
Environmental
- Ambient Air Temperature
- Operation -20 ... +55 °CStorage -40 ... +80 °C
- Maximum Operating Altitude Permissible
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 15g
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g / 5 ... 150 Hz
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Coil Operating Limits
- (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²Flexible 1/2x 1 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm²
- Connecting Capacity Control Circuit
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²Flexible 1/2x 1 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm²
- Connecting Capacity Main Circuit
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²Flexible 1/2x 1 ... 2.5 mm²Rigid 1/2x 1 ... 4 mm²
- Conventional Free-air Thermal Current (Ith)
- Main Circuit 20 A
- Degree of Protection
- Main Circuit Terminals IP20
- Maximum Electrical Switching Frequency
- (AC-1) 300 cycles per hour(AC-15) 600 cycles per hour(AC-3) 600 cycles per hour(DC-1) 600 cycles per hour(DC-13) 600 cycles per hour(DC-3) 600 cycles per hour
- Mechanical Durability
- 10000000 cycle
- Minimum Switching Capacity
- Auxiliary Circuit 17 VAuxiliary Circuit 5 mA
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 1
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 3
- Number of Poles
- 3
- Pollution Degree
- 3
- Power Loss
- at Rated Operating Conditions per Pole 2 Wat Rated Operating Conditions AC-1 per Pole 1.4 W
- Rated Control Circuit Voltage (Uc)
- 110 ... 127 V AC
- Rated Frequency (f)
- Main Circuit 60 HzMain Circuit 50 HzMain Circuit DC
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 6 kV
- Rated Insulation Voltage (Ui)
- 690 Vacc. to UL/CSA 600 V
- Rated Operational Current AC-1 (Ie)
- (220 / 240 V) 40 °C 20 A(220 / 240 V) 55 °C 16 A(380 / 440 V) 40 °C 20 A(380 / 440 V) 55 °C 16 A(690 V) 40 °C 6 A(690 V) 55 °C 6 A
- Rated Operational Power AC-3 (Pe)
- (230 V) Three Phase 3 kW(400 V) Three Phase 5.5 kW(500 V) Three Phase 5.5 kW(690 V) Three Phase, NO 3 kW
- Rated Operational Voltage
- Auxiliary Circuit 690 V ACAuxiliary Circuit 250 V DCMain Circuit 690 V ACMain Circuit 220 V DC
- Rated Short-time Withstand Current Low Voltage (Icw)
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
- Recommended Screw Driver
- M3Pozidriv 1
- Standards
- IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1
- Tightening Torque
- Control Circuit 0.8 ... 1.1 N·mMain Circuit 0.8 ... 1.1 N·m
- Wire Stripping Length
- Auxiliary Circuit 9 mmMain Circuit 9 mm
Technical UL/CSA
- Connecting Capacity Auxiliary Circuit UL/CSA
- Stranded 1/2x 22-10 AWG
- Connecting Capacity Main Circuit UL/CSA
- Stranded 1/2x 22-10 AWG
- Contact Rating UL/CSA
- A600
- Full Load Amps Motor Use
- (115 V AC) Single Phase 13.8 A(200 V AC) Three Phase 7.8 A(220 ... 240 V AC) Three Phase 9.6 A(230 V AC) Single Phase 10 A(440 ... 480 V AC) Three Phase 7.6 A(550 ... 600 V AC) Three Phase 6.1 A
- General Use Rating UL/CSA
- (600 V AC) 16 A
- Horsepower Rating UL/CSA
- (115 V AC) Single Phase 0.75 Hp(200 V AC) Three Phase 2 Hp(220 ... 240 V AC) Three Phase 3 Hp(230 V AC) Single Phase 1.5 Hp(440 ... 480 V AC) Three Phase 5 Hp(550 ... 600 V AC) Three Phase 5 Hp
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lbControl Circuit 7 in·lbMain Circuit 7 in·lb
