ABB TE5S-24
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

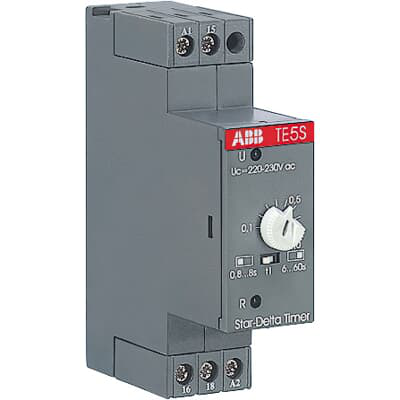

TE5S-24 Electronic TimerTE5S-24 Electronic Timer
ABB TE5S-24 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371308
- E-Number (Finland)
- 3709228
- ETIM 9
- EC002060 - Timer block
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 75 mm
- Product Net Height
- 85 mm
- Product Net Weight
- 0.08 kg
- Product Net Width
- 23 mm
Environmental
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 10 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
- Resistance to Shock acc. to IEC 60068-2-27
- Half-sine Pulse for 11 ms, Shock Direction: A 20 m/s²Half-sine Pulse for 11 ms, Shock Direction: B 15 m/s²Half-sine Pulse for 11 ms, Shock Direction: C 20 m/s²
- RoHS Information
- 2CMT2021-006277
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85364190
- Minimum Order Quantity
- 1 piece
- Product Main Type
- Accessories for Block Contactors
Technical
- Coil Consumption
- Average Holding Value 50 Hz 1.5 V·AAverage Holding Value 60 Hz 1.5 V·A
- Connecting Capacity Auxiliary Circuit
- Flexible with Cable End 0.75 ... 2.5 mm²Rigid Cable 1/2x 1 ... 2.5 mm²
- Maximum Mechanical Switching Frequency
- 720 cycles per hour
- Mounted Auxiliary Contacts
- 1 NO, 1 NC
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Main Contacts NC
- 0
- Rated Control Circuit Voltage (Uc)
- 50 Hz / 60 Hz 24 V DC
- Rated Control Supply Voltage (Us)
- 24 V AC/DC
- Rated Frequency (f)
- Auxiliary Circuit 50 / 60 HzControl Circuit 50 / 60 Hz
- Rated Frequency Limits
- 48 ... 63 Hz
- Rated Operational Current AC-15 (Ie)
- (24 / 127 V) 5 A(220 / 240 V) 4 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 4 A
- Rated Operational Voltage
- Auxiliary Circuit 240 V
- Short-Circuit Protective Devices
- gG Type Fuses 10 A
- Suitable For
- A9A12A16A26A30A40A45A50A63A75A95A110A145A185A210A260A300AX06AX09AX12AX18AX25AX32AX40AX50AX65AX80AX95AX115AX150AX185AX205
- Terminal Type
- Screw Terminals
