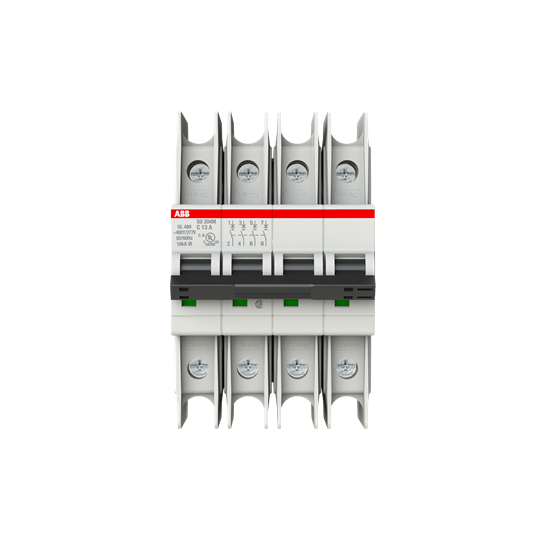

ABB SU204M-C13
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SU204M-C13 Miniature Circuit Breaker C-Char., 10kA, 13A, 4P UL489SU204M-C13 Miniature Circuit Breaker - 4P - C - 13 A
ABB SU204M-C13 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 20 10
- eClass
- V11.0 : 27141901
- EPLAN Function Definition
- Circuit breaker / Quadruple circuit-breaker / Quadruple circuit-breaker 1_2_3_4_5_6_7_8
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- IDEA Granular Category Code (IGCC)
- 4897 >> Miniature circuit breakers
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Pole Net Weight
- 0.125 kg
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 111 mm
- Product Net Weight
- 0.5 kg
- Product Net Width
- 70 mm
- Width in Number of Modular Spacings
- 4
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20Enclosure with Cover IP40
- Environmental Conditions
- 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
- Environmental Information
- 9AKK107680A9140
- Pollution Degree
- 3
- REACH Declaration
- 9AKK107492A1906
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
- RoHS Information
- 2CDK400595D2706
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 89318623-ff2d-4ce0-aefe-5d16fac11138 Germany (DE)
Installation
- Instructions and Manuals
- 2CDC002177D0202
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.54 kg
- Package Level 1 Units
- carton 1 piece
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Actuator Material
- Insulation Group II, Black, Sealable
- Connecting Capacity
- Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
- Contact Position Indication
- Red ON / Green OFF
- Energy Limiting Class
- 3
- Housing Material
- Insulation Group I, RAL 7035
- Input Voltage Type
- AC/DC
- Installation Size
- acc. to DIN 43880 3
- Mechanical Endurance
- 20000 cycle
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- any
- Number of Poles
- 4
- Number of Protected Poles
- 4
- Overvoltage Category
- III
- Power Loss
- 9.2 Wat Rated Operating Conditions per Pole 2.3 W
- Power Supply Connection
- Arbitrary
- Rated Conditional Short-Circuit Current (Inc)
- (400 V) 15 kA
- Rated Current (In)
- 13 A
- Rated Frequency (f)
- 50 / 60 HzDC
- Rated Impulse Withstand Voltage (Uimp)
- 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 440 V
- Rated Operational Voltage
- acc. to IEC 60898-1 480 Vacc. to IEC 60947-2 400 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (400 V AC) 11.2 kA
- Rated Short-Circuit Capacity
- (400 V AC) 11.2 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 15 kA
- Recommended Screw Driver
- Pozidriv 2
- Screw Terminal Type
- Failsafe Bi-directional Cylinder-lift Terminal
- Standards
- CSA 22.2 No. 5IEC/EN 60947-2UL 489
- Terminal Type
- Double Clamp
- Tightening Torque
- 2.8 N·m
- Tripping Characteristic
- C
Technical UL/CSA
- Connecting Capacity UL/CSA
- Busbar 18-8 AWGConductor 18-4 AWG
- Interrupting Rating acc. to UL489
- (240 V AC) 10 kA(480Y / 277 V AC) 10 kA
- Maximum Operating Voltage UL/CSA
- 480Y / 277 V AC
