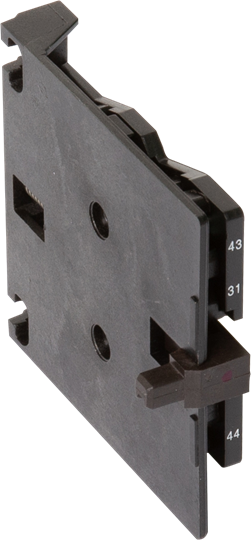

ABB SK829002-D
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
2 pole screw type right outer side mounted auxilliary contact block, instantaneous N.O. and N.C. contacts, suitable for standard industrial environmentsCAL16-11D Auxiliary Contact Block
ABB SK829002-D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.1 : 27371302
- E-Number (Finland)
- 3846772
- ETIM 9
- EC000041 - Auxiliary contact block
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 68 mm
- Product Net Weight
- 0.05 kg
- Product Net Width
- 12.5 mm
Environmental
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-5-1, Θ = 40 °C 16 A
- Degree of Protection
- IP20
- RoHS Information
- 2CMT2021-006277
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
- Product Main Type
- CAL16
Technical
- Connecting Terminals (delivered in open position)
- M 3.5 (+,-) pozidriv 2 screw with cable clamp
- Minimum Switching Capacity
- 0.25 VA/ 12 V / 5 mA
- Power Loss
- at Rated Operating Conditions per Pole 0.2 W
- Rated Frequency (f)
- Supply Circuit 50 / 60 Hz
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
- Rated Operational Current AC-15 (Ie)
- (500 V) 1 A(690 V) 1 A(24 / 127 V) 6 A(220 / 240 V) 6 A(380 / 400 V) 4 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 6 A(48 V) 6 A(72 V) 4 A(125 V) 1.8 A(250 V) 0.6 A
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 0.1 s 100 Afor 1 s 50 A
- Short-Circuit Protective Devices
- Auxiliary Circuit - gG Type Fuses 10 A
- Suitable For
- EH175EH210EH260EH300EH370EH450EH550EH700EH800EH1200EHDB220EHDB280EHDB360EHDB520EHDB650EHDB800EHDB960EK110EK150EK175EK210EK370EK550EK1000
- Suitable for Product Class
- Block Contactors
- Technical Information
- AUXILIARY CONTACT
