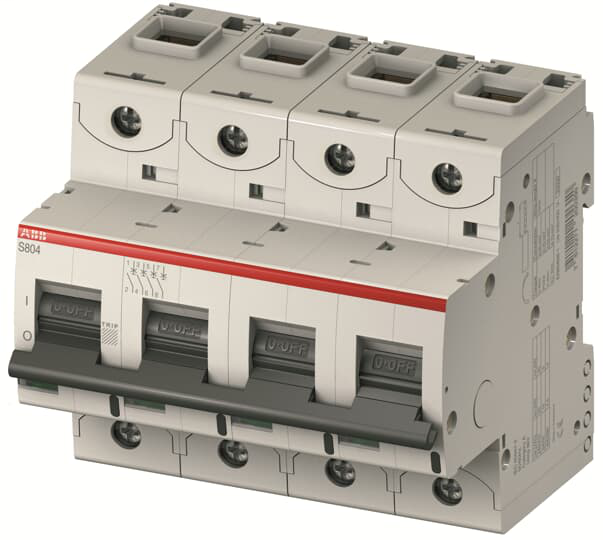

ABB S804PV-S16
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The S804PV-S16 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1200V. It can be used for voltages up to 1200V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804PV-S16 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804PV-S16 more comfortable. Due to the fast arc extinction of S804PV-S16 your application will be secured.S804PV-S16
ABB S804PV-S16 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 6
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 7
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- F
Container Information
- Package Level 1 Depth / Length
- 111 mm
- Package Level 1 EAN
- 7612271211158
- Package Level 1 Gross Weight
- 1010 g
- Package Level 1 Height
- 99 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 105 mm
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 95 mm
- Product Net Weight
- 980 g
- Product Net Width
- 106 mm
Environmental
- Ambient Air Temperature
- Operation -25...60 °C
- Environmental Conditions
- Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycleDamp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96%Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100%Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °CDry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 5 g30 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85352120
- E-Number (Switzerland)
- 805679302
- Minimum Order Quantity
- 1 piece
Technical
- Actuator Marking
- I / O
- Built-In Depth (t2)
- 82.5 mm
- Connecting Capacity
- Rigid 0 ... 50 mm²Flexible 0 ... 70 mm²
- Contact Position Indication
- ON / OFF / TRIP
- Degree of Protection
- IP20
- Housing Material
- Insulation group I, RAL 7035
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- Any
- Number of Poles
- 4
- Number of Protected Poles
- 4
- Overvoltage Category
- III
- Pollution Degree
- 2
- Power Loss
- at Rated Operating Conditions per Pole 3.1 W
- Rated Current (In)
- 16 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1500 V DC
- Rated Operational Voltage
- 1200 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (1200 V DC) 5 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (1200 V DC) 5 kA
- Recommended Screw Driver
- Pozidriv 2
- Remarks
- Connection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
- Standards
- IEC/EN 60947-2
- Terminal Type
- Screw Terminals
- Tightening Torque
- 3.5 N·m
- Tripping Characteristic
- B
