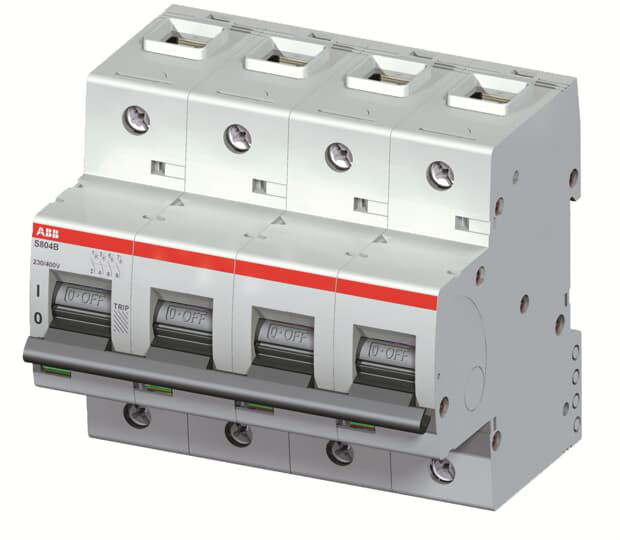

ABB S804B-C125
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The S804B-C125 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 125 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804B-C125 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804B-C125 more comfortable. Due to the fast arc extinction of S804B-C125 your application will be secured.S804B-C125 High Performance MCB
ABB S804B-C125 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 6
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 7
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- F
Container Information
- Package Level 1 Depth / Length
- 111 mm
- Package Level 1 EAN
- 5413656710967
- Package Level 1 Gross Weight
- 1010 g
- Package Level 1 Height
- 99 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 105 mm
- Package Level 2 Gross Weight
- 1.1 kg
- Package Level 2 Height
- 0.92 mm
- Package Level 2 Units
- 1 piece
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 95 mm
- Product Net Weight
- 980 g
- Product Net Width
- 106 mm
Environmental
- Ambient Air Temperature
- Operation -25...60 °C
- Reference Ambient Air Temperature
- acc. to IEC60947-2 30 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85362020
- Minimum Order Quantity
- 1 piece
Technical
- Actuator Marking
- I / O
- Built-In Depth (t2)
- 82.5 mm
- Connecting Capacity
- Rigid 0 ... 50 mm²Flexible 0 ... 70 mm²
- Contact Position Indication
- ON / OFF / TRIP
- Degree of Protection
- IP20
- Energy Limiting Class
- 3
- Housing Material
- Insulation group I, RAL 7035
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- Any
- Number of Poles
- 4
- Number of Protected Poles
- 4
- Overvoltage Category
- III
- Pollution Degree
- 3
- Power Loss
- at Rated Operating Conditions per Pole 10.9 W
- Rated Current (In)
- 125 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 500 V AC
- Rated Operational Voltage
- 230/400 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 / 400 V AC) 10 kA
- Rated Short-Circuit Capacity (Icn)
- (400 V) 10 kA(230 V) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 / 400 V AC) 16 kA(300 V DC) 10 kA
- Recommended Screw Driver
- Pozidriv 2
- Remarks
- Connection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captIIIe screw
- Standards
- IEC/EN 60947-2IEC/EN 60898-1
- Terminal Type
- Screw Terminals
- Tightening Torque
- 3.5 N·m
- Tripping Characteristic
- C
