Description

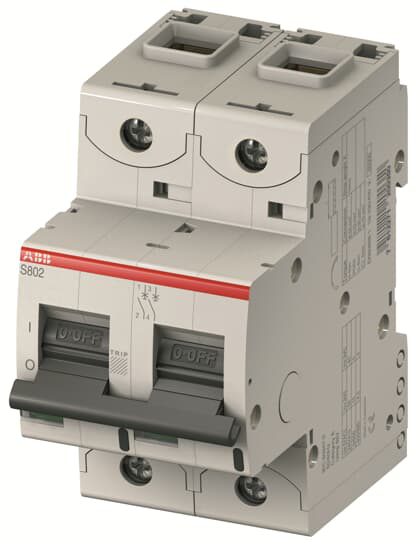

S802PV-S10 2 Pole S Characteristic 10A 5kA 800VDC PV String protectionS802PV-S10
ABB S802PV-S10 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 6
- EC000042 - Miniature circuit breaker (MCB)
- ETIM 7
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- F
Container Information
- Package Level 1 Depth / Length
- 60 mm
- Package Level 1 EAN
- 7612271210939
- Package Level 1 Gross Weight
- 510 g
- Package Level 1 Height
- 99 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 105 mm
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 95 mm
- Product Net Weight
- 490 g
- Product Net Width
- 54 mm
Environmental
- Ambient Air Temperature
- Operation -25...60 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85362020
- E-Number (Switzerland)
- 805648102
- Minimum Order Quantity
- 1 piece
Technical
- Actuator Marking
- I / O
- Built-In Depth (t2)
- 82.5 mm
- Connecting Capacity
- Rigid 0 ... 50 mm²Flexible 0 ... 70 mm²
- Contact Position Indication
- ON / OFF / TRIP
- Degree of Protection
- IP20
- Number of Poles
- 2
- Number of Protected Poles
- 2
- Overvoltage Category
- III
- Pollution Degree
- 2
- Power Loss
- 1.5 W
- Rated Current (In)
- 10 A
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- 1500 V
- Rated Operational Voltage
- 800 V DC
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (800 V DC) 5 kA
- Standards
- IEC/EN 60947-2
- Tripping Characteristic
- B
