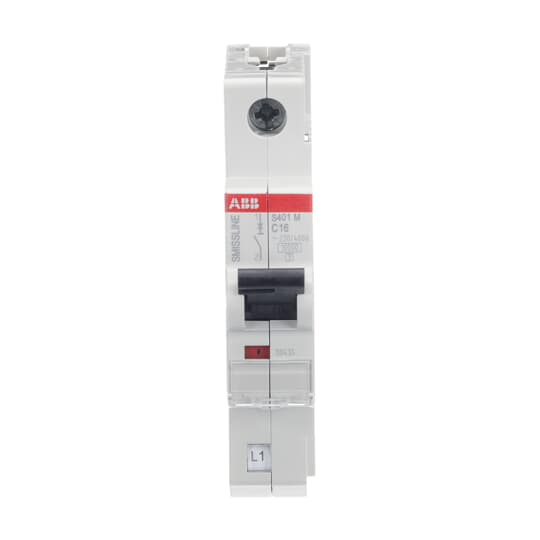

ABB S401M-C16
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.S401M-C16 Miniature Circuit Breaker
ABB S401M-C16 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85362020
- eClass
- V11.0 : 27141901
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- FC
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 75 mm
- Dimension Diagram
- 9AKK107492A6192
- Product Net Depth / Length
- 82 mm
- Product Net Height
- 91 mm
- Product Net Weight
- 110 g
- Product Net Width
- 18 mm
- Size
- 1 module
- Width in Number of Modular Spacings
- 1
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108467A9561
- Pollution Degree
- 3
- Reference Ambient Air Temperature
- 30 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- 2…13.2 Hz/1 mm13.2…100Hz/0.7 g, 5 cycles5…150 … 5 Hz/1 g, 4 waves
- RoHS Information
- 9AKK107991A9634
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CCC451019M0109
Ordering
- E-Number (Sweden)
- 2100067
- E-Number (Switzerland)
- 809119807
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 1165 g
- Package Level 1 Units
- carton 10 piece
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Connecting Capacity
- Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
- Contact Position Indication
- Red ON / Green OFF
- Electrical Endurance
- 10000 cycle
- Energy Limiting Class
- 3
- Frequency (f)
- 50 ... 60 Hz
- Input Voltage Type
- AC
- Mechanical Endurance
- 10000 cycle
- Mounting Position
- Any
- Number of Poles
- 1
- Number of Protected Poles
- 1
- Operational Voltage
- Maximum (Incl. Tolerance) 254 V ACMinimum 12 V ACMinimum 12 V DC
- Overvoltage Category
- III
- Power Loss
- 2.2 W
- Power Supply Connection
- Arbitrary
- Rated Current (In)
- 16 A
- Rated Frequency (f)
- 50 ... 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 440 V
- Rated Operational Current (Ie)
- 16 A
- Rated Operational Voltage
- acc. to IEC 60898-1 240 V ACacc. to IEC 60947-2 240 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (240 V AC) 15 kA(254 V AC) 7.5 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 50 %
- Rated Short-Circuit Capacity
- (AC) 10 kA(240 / 415 V AC) 10 kA
- Rated Short-Circuit Making Capacity (Icm)
- (240 V AC) 52.5 kA(254 V AC) 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (240 V AC) 25 kA(254 V AC) 15 kA
- Recommended Screw Driver
- Pozidriv 2
- Release Type
- C
- Screw Terminal Type
- Failsafe Bi-directional Cylinder-lift Terminal
- Standards
- IEC/EN 60898-1IEC/EN 60947-2
- Terminal Type
- Screw Terminals
- Tightening Torque
- 2.8 N·m
- Tripping Characteristic
- C
