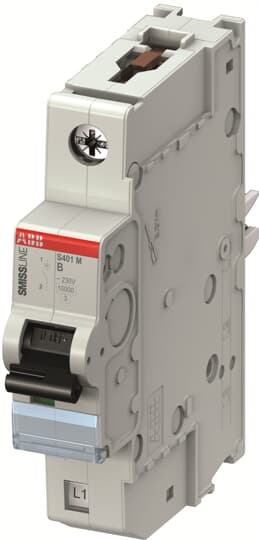

ABB S401M-B4
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pluggable Miniature circuit-breaker for the SMISSLINE TP System acc. IEC/EN 60898-1 Rated short-circuit capacity Icn 10 kA Rated current In 4A Tripping characteristic B Poles 1L Rated voltage Ue 230 VACS401M-B4 Miniature Circuit Breaker
ABB S401M-B4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85362020
- eClass
- V11.0 : 27141901
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- FC
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 75 mm
- Dimension Diagram
- 9AKK107492A6192
- Product Net Depth / Length
- 75 mm
- Product Net Height
- 91 mm
- Product Net Weight
- 110 g
- Product Net Width
- 18 mm
- Size
- 1 module
- Width in Number of Modular Spacings
- 1
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108467A9561
- Pollution Degree
- 3
- RoHS Information
- 9AKK107991A9634
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CCC451019M0109
Ordering
- E-Number (Switzerland)
- 809015807
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 1165 g
- Package Level 1 Units
- carton 10 piece
Technical
- Accessories Available
- Yes
- Connecting Capacity
- Rigid 0.75 ... 25 mm²
- Energy Limiting Class
- 3
- Frequency (f)
- 50 ... 60 Hz
- Input Voltage Type
- AC
- Number of Poles
- 1
- Number of Protected Poles
- 1
- Operational Voltage
- Minimum 12 V AC
- Overvoltage Category
- III
- Power Loss
- 1.7 W
- Rated Current (In)
- 4 A
- Rated Frequency (f)
- 50 ... 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 440 V
- Rated Operational Current (Ie)
- 4 A
- Rated Operational Voltage
- acc. to IEC 60898-1 230 V AC
- Rated Short-Circuit Capacity
- (AC) 10 kA(230 / 400 V AC) 10 kA
- Release Type
- B
- Standards
- IEC/EN 60898-1
- Tripping Characteristic
- B
