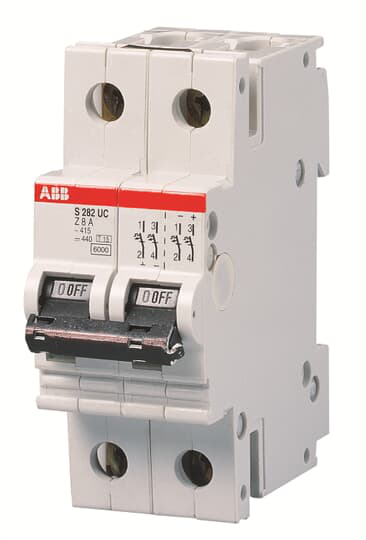

ABB S282UC-B10
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
System pro M S280UC is a universal current miniature circuit breaker that provides current limitation. With its high DC voltage rating it is a excellent solution for DC applications in photovoltaic’s, telecommunication, traction and industrial applications.S282UC-B10 Miniature Circuit Breaker - 2P - B - 10 A
ABB S282UC-B10 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 10 10
- eClass
- V11.0 : 27141901
- EPLAN Function Definition
- Circuit breaker / Double circuit-breaker / Double circuit breaker 1_2_3_4
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- IDEA Granular Category Code (IGCC)
- 4897 >> Miniature circuit breakers
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 68 mm
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 90 mm
- Product Net Weight
- 0.26 kg
- Product Net Width
- 35 mm
- Size
- 2 modules
- Width in Number of Modular Spacings
- 2
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20Enclosure with Cover IP40
- Environmental Conditions
- 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
- Environmental Information
- 2CDK400030D0201
- Pollution Degree
- 2
- Reference Ambient Air Temperature
- 30 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 30g 3 shocks 11 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
- RoHS Information
- 2CDK400005K0201
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 2CSC400002D0208
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 1.34 kg
- Package Level 1 Units
- carton 5 piece
- Replacement Product ID (NEW)
- 2CDS272061R0105
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Actuator Material
- Insulation Group II, Black, Sealable
- Actuator Type
- Toggle
- Connecting Capacity
- Busbar 16 mm²Flexible with Ferrule 0.75 ... 16 mm²Flexible 0.75 ... 16 mm²Rigid 0.75 ... 25 mm²Stranded 0.75 ... 25 mm²
- Contact Position Indication
- ON / OFF
- Dielectric Test Voltage
- 50/60 Hz, 1 min: 2 kV
- Electrical Endurance
- 10000 AC cycle
- Housing Material
- Insulation Group I, RAL 7035
- Input Voltage Type
- AC/DC
- Installation Size
- acc. to DIN 43880 1
- Mechanical Endurance
- 20000 cycle
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- any
- Number of Poles
- 2
- Operational Voltage
- Maximum (Incl. Tolerance) 440 V ACMaximum (Incl. Tolerance) 484 V DCMinimum 12 V ACMinimum 12 V DC
- Overvoltage Category
- III
- Rated Current (In)
- 10 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 500 V
- Rated Operational Voltage
- acc. to IEC 60898-1 440 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 6 kA
- Rated Short-Circuit Capacity
- (AC) 6 kA(DC) 6 kA(440 V DC) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- 6 kA
- Recommended Screw Driver
- Pozidriv 2
- Remarks
- Please note polarity of device
- Screw Terminal Type
- Cable Clamp
- Standards
- CSA 22.2 No. 235IEC/EN 60947-2UL 1077
- Terminal Type
- Screw Terminals
- Tightening Torque
- 2.5 N·m
- Tripping Characteristic
- B
Technical UL/CSA
- Connecting Capacity UL/CSA
- Conductor 18-4 AWG
- Interrupting Rating acc. to UL1077
- 4.5 kA
- Tightening Torque UL/CSA
- Main Circuit 17.5 in·lb
