ABB S203-K20
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

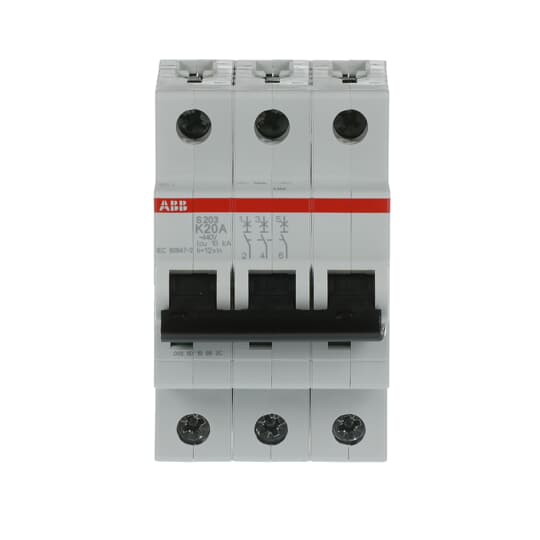

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.S203-K20 Miniature Circuit Breaker - 3P - K - 20 A
ABB S203-K20 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 90 %
- Offered with Extended Lifetime
- Product Durability
- Offered with Takeback Services
- Take Back for Recycling
- Sustainable Material Content
- 0 %
Classifications
- CN8
- 8536 20 10
- eClass
- V11.0 : 27141901
- EPLAN Function Definition
- Circuit breaker / Triple circuit breaker / Triple circuit breaker 1_2_3_4_5_6
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- IDEA Granular Category Code (IGCC)
- 4897 >> Miniature circuit breakers
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Dimension Diagram
- 2CDC022007F0010
- Pole Net Weight
- 0.125 kg
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 88 mm
- Product Net Weight
- 0.375 kg
- Product Net Width
- 52.5 mm
- Width in Number of Modular Spacings
- 3
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108467A7832
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20Enclosure with Cover IP40
- Environmental Conditions
- 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
- Pollution Degree
- 3
- REACH Declaration
- 9AKK107492A1906
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
- RoHS Information
- 2CDK403001D0607
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)
Installation
- Instructions and Manuals
- 2CDS207104P0002
Ordering
- E-Number (Finland)
- 3210918
- E-Number (Sweden)
- 2100733
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.4 kg
- Package Level 1 Units
- carton 1 piece
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Actuator Material
- Insulation Group II, Black, Sealable
- Connecting Capacity
- Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
- Contact Position Indication
- Red ON / Green OFF
- Dielectric Test Voltage
- 50/60 Hz, 1 min: 2 kV
- Electrical Endurance
- 20000 AC cycle
- Frequency (f)
- 50 Hz
- Housing Material
- Insulation Group II, RAL 7035
- Input Voltage Type
- AC/DC
- Installation Size
- acc. to DIN 43880 1
- Mechanical Endurance
- 20000 cycle
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- any
- Mounting Type
- DIN-Rail
- Number of Poles
- 3
- Number of Protected Poles
- 3
- Operational Voltage
- Maximum (Incl. Tolerance) 440 V AC
- Overvoltage Category
- III
- Power Loss
- 8.1 Wat Rated Operating Conditions per Pole 2.7 W
- Power Supply Connection
- Arbitrary
- Rated Conditional Short-Circuit Current (Inc)
- (230 V) 20 kA(400 V) 20 kA
- Rated Current (In)
- 20 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 440 V
- Rated Operational Voltage
- acc. to IEC 60898-1 400 V ACacc. to IEC 60947-2 440 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 V AC) 15 kA(400 V AC) 7.5 kA(440 V AC) 7.5 kA
- Rated Short-Circuit Capacity
- (AC) 6 kA(DC) 6 kA(400 V AC) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V AC) 20 kA(400 V AC) 10 kA(440 V AC) 10 kA
- Recommended Screw Driver
- Pozidriv 2
- Screw Terminal Type
- Failsafe Bi-directional Cylinder-lift Terminal
- Standards
- IEC/EN 60898-1IEC/EN 60947-2UL 1077
- Terminal Type
- Screw Terminals
- Tightening Torque
- 2.8 N·m
- Tripping Characteristic
- K
- Wire Stripping Length
- 12.5 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Busbar 18-8 AWGConductor 18-4 AWG
- Interrupting Rating acc. to UL1077
- (277 V AC) 6 kA(480Y / 277 V AC) 6 kA(240 V) 10 kA
- Maximum Operating Voltage UL/CSA
- 110 V DC480Y / 277 V AC
- Tightening Torque UL/CSA
- 18 in·lb
