ABB PST37-600-70
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

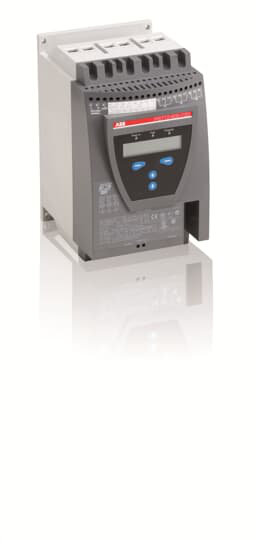

Softstarter PST37-600-70 for max 600V main voltage and 110 - 240V 50/60Hz control supply voltagePST37-600-70 Softstarter - 37 A - Main Circuit 208 ... 600 V AC
ABB PST37-600-70 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370907
- ETIM 9
- EC000640 - Soft starter
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 196 mm
- Product Net Height
- 260 mm
- Product Net Weight
- 4.8 kg
- Product Net Width
- 160 mm
Environmental
- Ambient Air Temperature
- Operation 0 ... +50 °CStorage -25 ... +70 °C
- Degree of Protection
- IP10
- RoHS Status
- No declaration needed
Ordering
- Customs Tariff Number
- 8503009999
- Minimum Order Quantity
- 1 piece
Technical
- Adjustable Rated Motor Current Ie
- 30 ... 115 %
- Analog Outputs
- 0…10 volts0…20 mA4…20 mA
- By-pass Signal Relay
- Yes
- Communication
- FiledBusPlug(Standard)
- Connecting Capacity Control Circuit
- Rigid 1 x 2.5 mm²Rigid 2 x 1.5 mm²
- Connecting Capacity Main Circuit
- Rigid 1 x 10 ... 95 mm²Rigid 2 x 6 ... 35 mm²
- Connecting Capacity Supply Circuit
- Rigid 1 x 2.5 mm²
- Current Limit Function
- 1.5 ... 7xIe
- Degree of Protection
- IP10
- Fault Signal Relay
- Yes
- Initial Voltage During Start
- 30 ... 70 %
- Integrated Electronic Overload
- Yes
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 30
- Overload Protection
- Build-in electronic overload protection
- Overload Signal Relay
- Yes
- Product Main Type
- PST37
- Ramp Time
- 0 ... 120 second [unit of time]1 ... 120 second [unit of time]
- Rated Control Circuit Voltage (Uc)
- DC Operation 24 V
- Rated Control Supply Voltage (Us)
- 100 ... 250 V AC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current - In-Line Connection (Ie)
- 37 A
- Rated Operational Current - Inside Delta Connection
- 64 A
- Rated Operational Power - In-Line Connection (Pe)
- (400 V) 18.5 kW(500 V) 22 kW
- Rated Operational Power - Inside Delta Connection
- at 400 V 30 kWat 500 V 37 kW
- Rated Operational Voltage
- Main Circuit 208 ... 600 V AC
- Run Signal Relay
- Yes
- Service Factor Percentage
- 115 %
- Signal Indication Fault (LED)
- Red
- Signal Indication Protection (LED)
- Yellow
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Starting Capacity at Maximum Rated Current Ie
- 3xIe for 15s
- Step Down Voltage Special Ramp
- 100 ... 30 %
- Switch for Inside Delta Connection
- Yes
- Terminal Type
- Screw Terminals
- Tightening Torque
- Control Circuit 0.5 N·mMain Circuit 6 N·mSupply Circuit 0.5 N·m
