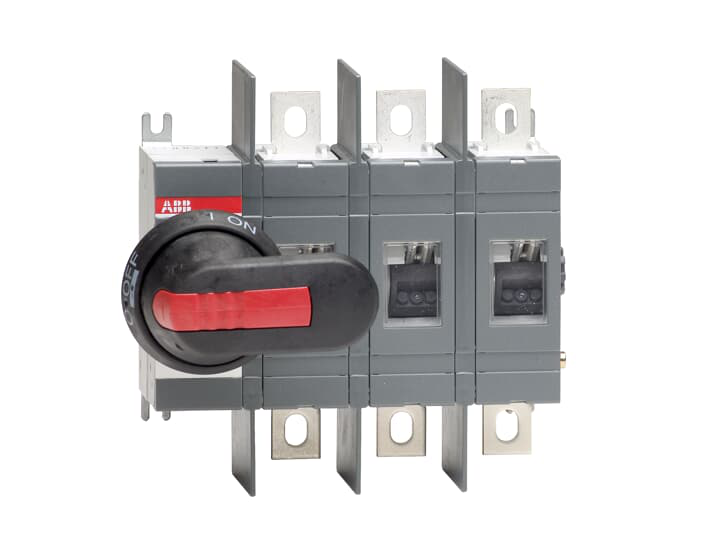

ABB OT200U03P
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Including handle: NEMA 1, 3R, 12, IP65 and shaftOT200U03P SWITCH-DISCONNECTOR
ABB OT200U03P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- Environmental Information
- 1SCC301265D0201
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371403
- E-Number (Finland)
- 3660850
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- IDEA Granular Category Code (IGCC)
- 5290 >> Disconnect switch
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 170 mm
- Product Net Weight
- 1.6 kg
- Product Net Width
- 169.5 mm
Environmental
- Environmental Information
- 1SCC301265D0201
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 200 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 200 A
- Degree of Protection
- Front IP00
- Distance Between Phases
- Standard
- Handle Color
- Black
- Handle Type
- Handle and shaft included
- Lock Type
- Yes
- Mechanical Durability
- 20000
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Operating Mode
- Front operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 6.5 W
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 1000 V
- Rated Operational Current AC-21A (Ie)
- (690 V) 200 A(500 V) 200 A(380 ... 415 V) 200 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Power AC-23A (Pe)
- (380 ... 415 V) 110 kW(500 V) 132 kW(690 V) 200 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-Circuit Making Capacity (Icm)
- (690 V) 30 kA
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 8 kA
- Special Functions
- No
- Standards
- IEC 60947-3 / UL 98 / CSA C22.2 NO.4
- Switches Operating Mechanism
- Mechanism at the End of the Switch03 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 20 mm
- Tightening Torque
- acc. IEC 60947-1 22.6 N·m
Technical UL/CSA
- Ampere Rating
- 200 A
- Horsepower Rating UL/CSA
- (acc. to UL 200 V) 60 Hp(acc. to UL 208 V) 60 Hp(acc. to UL 240 V) 75 Hp(acc. to UL 480 V) 150 Hp(acc. to UL 600 V) 200 Hp
- Maximum Operating Voltage UL/CSA
- 600 V
- Tightening Torque
- acc. IEC 60947-1 22.6 N·m
