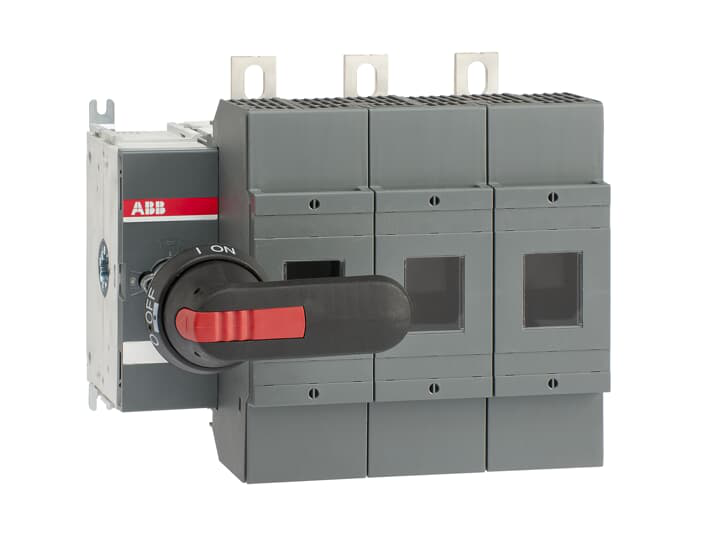

ABB OS400J03P
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switch Fuses,Front Operated,3-pole,03 (Left Side),Class J,400 A,Handle and shaft included,OS400J03P FUSIBLE DISCONNECT SWITCH
ABB OS400J03P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371401
- ETIM 9
- EC001040 - Fuse switch disconnector
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 176 mm
- Product Net Height
- 230 mm
- Product Net Weight
- 7.25 kg
- Product Net Width
- 255 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Finland (FI)
- Customs Tariff Number
- 85365080
- Minimum Order Quantity
- 1 piece
Technical
- Conventional Free-air Thermal Current (Ith)
- Θ = 40 °C 400 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 400 A
- Fuse Size
- 400 A
- Fuse System
- Class J
- Handle Type
- Pistol handle and shaft included
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Operating Mode
- Front Operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom Out, Bottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 45 W
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Rated Current (In)
- Main Circuit 400 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Current AC-21A (Ie)
- (500 V) 400 A(690 V) 400 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 132 kW(400 V) 220 kW(415 V) 230 kW(500 V) 280 kW(690 V) 400 kW
- Rated Operational Voltage
- Main Circuit 690 V AC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 14 kiloampere rms
- Standards
- UL98IEC 60947-3
- Switches Operating Mechanism
- 03 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 25 mm
- Tightening Torque
- 30 ... 44 N·m
Technical UL/CSA
- Ampere Rating
- 400 A
- Horsepower Rating UL/CSA
- (acc. to UL 240 V) 125 Hp(acc. to UL 480 V) 250 Hp(acc. to UL 600 V) 350 Hp
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V ACMain Circuit 250 V DC
- Tightening Torque
- 30 ... 44 N·m
- Tightening Torque UL/CSA
- Wire-Clamp 375 in·lbCable Lug 240 in·lb
