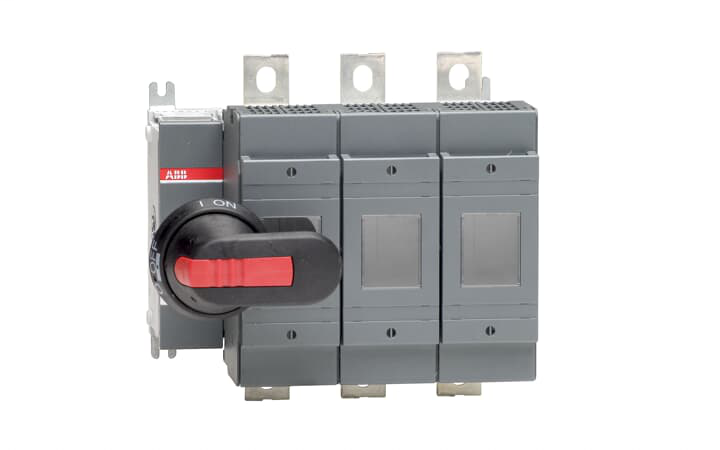

ABB OS250D03P
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,0,1,Handle and shaft included,OS250D03P SWITCH FUSE
ABB OS250D03P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- E-Number (Sweden)
- 3172070
- ETIM 4
- EC001040 - Fuse switch disconnector
- ETIM 5
- EC001040 - Fuse switch disconnector
- ETIM 6
- EC001040 - Fuse switch disconnector
- ETIM 7
- EC001040 - Fuse switch disconnector
- Object Classification Code
- Q
- UNSPSC
- 39122233
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 270 mm10.6 in
- Package Level 1 EAN
- 6417019230580
- Package Level 1 Gross Weight
- 4.4 kg9.7 lb
- Package Level 1 Height
- 170 mm6.7 in
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 230 mm9.1 in
Dimensions
- Product Net Depth / Length
- 154 mm
- Product Net Height
- 193 mm
- Product Net Weight
- 4.1 kg9 lb
- Product Net Width
- 208 mm
Technical
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 250 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 250 A
- Fuse Size
- 0,1
- Fuse System
- DIN
- Handle Type
- Handle and shaft included
- Mounting Type
- Base mounting
- Number of Poles
- 3
- Operating Mode
- Front Operated
- Pollution Degree
- 3
- Position of Line Terminals
- Top In - Bottom OutBottom In - Top Out
- Power Loss
- at Rated Operating Conditions per Pole 23 W
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 80 kA
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- 1000 V
- Rated Operational Current AC-21A (Ie)
- (500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-22A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Current AC-23A (Ie)
- (380 ... 415 V) 250 A(500 V) 250 A(690 V) 250 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 75 kW(400 V) 140 kW(415 V) 145 kW(500 V) 170 kW(690 V) 250 kW
- Rated Operational Voltage
- 500 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 8 kiloampere rms
- Standards
- IEC 60947-3
- Switches Operating Mechanism
- 03 (Left Side)
- Terminal Type
- Lug terminals
- Terminal Width
- 25 mm
- Tightening Torque
- 30 ... 44 N·m
