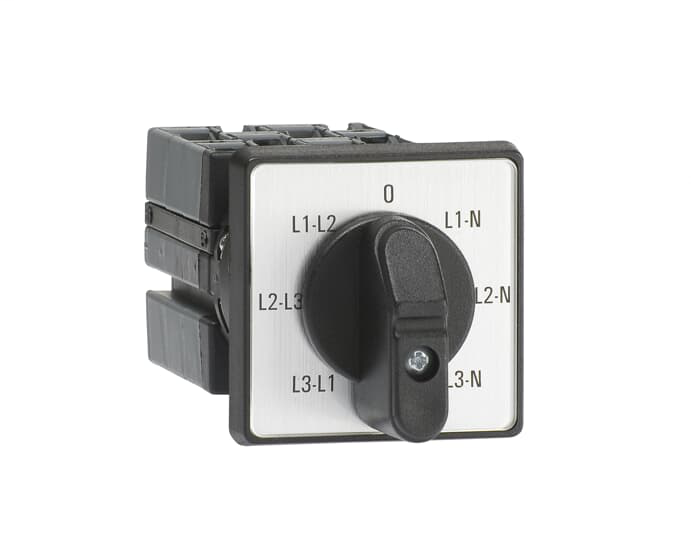

ABB ONV30PB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Black handle and frontplate with standard text are included. Special engraved frontplates to be ordered as separate items.ONV30PB Cam switch
ABB ONV30PB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 5
- EC000911 - Voltmeter selector switch
- ETIM 6
- EC000911 - Voltmeter selector switch
- ETIM 7
- EC000911 - Voltmeter selector switch
- Object Classification Code
- Q
- UNSPSC
- 39122217
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 104 mm
- Package Level 1 EAN
- 4034656522094
- Package Level 1 Gross Weight
- 0.12 kg
- Package Level 1 Height
- 48 mm
- Package Level 1 Units
- 10 piece
- Package Level 1 Width
- 48 mm
Dimensions
- Product Net Depth / Length
- 104 mm
- Product Net Height
- 48 mm
- Product Net Weight
- 0.12 kg
- Product Net Width
- 48 mm
Environmental
- Environmental Information
- 1SCC302003D0201
Ordering
- Last Ordering Date
- 2020-09-30 All Countries
- Replacement Product ID (NEW)
- 1SCA126660R1001
Technical
- Color
- Black
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 25 A
- Enclosure Type
- Not enclosed
- Handle Type
- Basic handle
- Mounting Type
- Snap-on door mounting
- Number of Contacts
- 6
- Number of Poles
- 4
- Rated Continuous Thermal Current
- FullyEnclosed 25 A
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Operational Current AC-22A (Ie)
- (500 V) 20 A(690 V) 20 A
- Rated Operational Current DC-21B (Ie)
- (440 V) 20 A(600 V) 16 A
- Rated Operational Voltage
- 400 V
- Rated Short-time Withstand Current (Icw)
- for 3 s 0.1 kA
- Special Functions
- Voltmeter switch: 7 Positions, 3 phase to phase 3 phase to neutral, with 0-position, step angle 45°, front plate L3-L1 L2-L3 L1-L2 0 L1-N L2-N L3-N
- Terminal Type
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA
- 600 V AC 25 A
