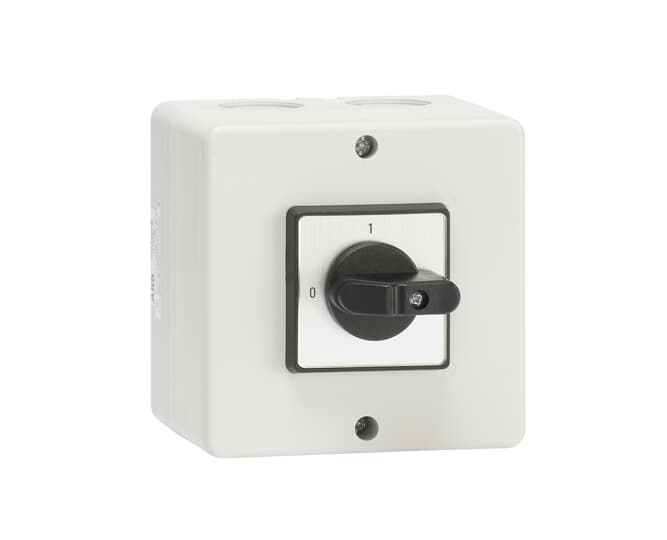

ABB ONA3EPB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Enclosed cam switch 3-p.400V AC23A 7.5kW AC22A 20A Plastic enclosure IP65 Black Selector handleONA3EPB Enclosed cam switch
ABB ONA3EPB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 5
- EC002611 - Control switch
- ETIM 6
- EC002611 - Control switch
- ETIM 7
- EC002611 - Control switch
- Object Classification Code
- Q
- UNSPSC
- 39122217
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 157 mm
- Package Level 1 EAN
- 4034656524005
- Package Level 1 Gross Weight
- 0.4 kg
- Package Level 1 Height
- 120 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 132 mm
Dimensions
- Product Net Depth / Length
- 70 mm
- Product Net Height
- 96 mm
- Product Net Weight
- 0.3 kg
- Product Net Width
- 96 mm
Environmental
- Environmental Information
- 1SCC302003D0201
Ordering
- Last Ordering Date
- 2020-09-30 All Countries
Technical
- Cable Entry Position
- Up/Down
- Cable Outlets Per Side
- M knock-outs
- Color
- Black
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 25 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 25 A
- Degree of Protection
- IP54IP65
- Enclosure Material
- Plastic
- Enclosure Type
- Enclosed
- Handle Type
- Basic handle
- Mounting Type
- Switch in enclosure
- Number of Contacts
- 3
- Number of Poles
- 3
- Pollution Degree
- 3
- Rated Continuous Thermal Current
- FullyEnclosed 25 A
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-22A (Ie)
- (500 V) 20 A(690 V) 20 A
- Rated Operational Current DC-21B (Ie)
- (440 V) 20 A(600 V) 16 A
- Rated Operational Power AC-23A (Pe)
- (220 ... 240 V) 2,6 kW(400 V) 7,5 kW(500 V) 4,8 kW(690 V) 4,8 kW
- Rated Operational Voltage
- 690 V
- Rated Short-time Withstand Current (Icw)
- for 3 s 0.1 kA
- Special Functions
- ON - OFF switch: 0-position: 9 o´clock, basic handle, step angle 90°, front plate 0-1
- Terminal Type
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA
- 600 V AC 25 A
