ABB OL40W3PB
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

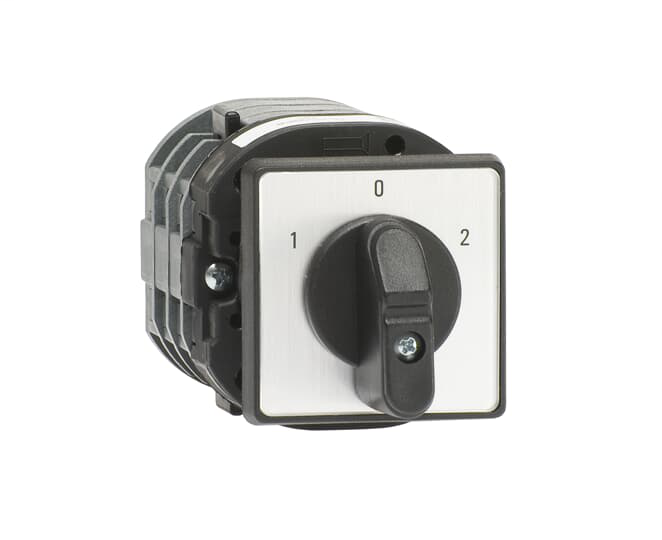

Door mounted, snap-on mounted handle. Function 1 - 0 - 2.OL40W3PB Cam switch
ABB OL40W3PB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 5
- EC002611 - Control switch
- ETIM 6
- EC002611 - Control switch
- ETIM 7
- EC002611 - Control switch
- Object Classification Code
- Q
- UNSPSC
- 39122217
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 250 mm
- Package Level 1 EAN
- 4034656526696
- Package Level 1 Gross Weight
- 0.21 kg
- Package Level 1 Height
- 110 mm
- Package Level 1 Units
- 10 piece
- Package Level 1 Width
- 100 mm
Dimensions
- Product Net Depth / Length
- 111 mm
- Product Net Height
- 56 mm
- Product Net Weight
- 0.21 kg
- Product Net Width
- 51 mm
Ordering
- Last Ordering Date
- 2020-09-30 All Countries
Technical
- Color
- Black
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 45 A
- Enclosure Type
- Not enclosed
- Handle Type
- Basic handle
- Mounting Type
- Snap-on door mounting
- Number of Contacts
- 5
- Number of Poles
- 3
- Pollution Degree
- 3
- Power Loss
- 2.9 W
- Rated Continuous Thermal Current
- 45 A
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-22A (Ie)
- (500 V) 40 A(690 V) 40 A
- Rated Operational Current DC-21B (Ie)
- (440 V) 40 A(600 V) 25 A
- Rated Operational Power AC-23A (Pe)
- (500 V) 15 kW(690 V) 15 kW(415 V) 15 kW(220 ... 240 V) 7.5 kW
- Rated Operational Voltage
- 690 V
- Rated Short-time Withstand Current (Icw)
- for 3 s 0.36 kA
- Special Functions
- Motor control switch: Reversing switch, basic handle, step angle 60°, front plate 1-0-2
- Terminal Type
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA
- 600 V AC 40 A
