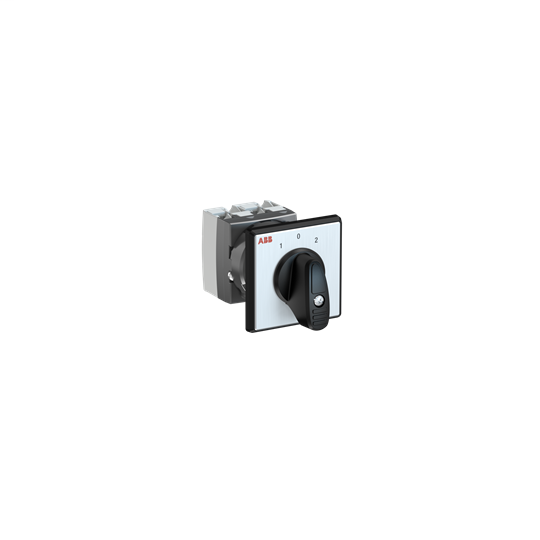

ABB OC25G02PNBN00NURR1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
OC25 Cam switch, Ith=25A, Change-Over, 2-contacts, Snap-on door mounting, Black Basic handle. Black handle and frontplate with standard text are included. Special engraved frontplates to be ordered as separate items.OC25G02PNBN00NURR1 Cam switch
ABB OC25G02PNBN00NURR1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 5
- EC002611 - Control switch
- ETIM 6
- EC002611 - Control switch
- ETIM 7
- EC002611 - Control switch
- Object Classification Code
- Q
- UNSPSC
- 39122217
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Container Information
- Package Level 1 Depth / Length
- 122 mm
- Package Level 1 EAN
- 6417019564821
- Package Level 1 Gross Weight
- 0.09 kg
- Package Level 1 Height
- 70 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 70 mm
Dimensions
- Product Net Depth / Length
- 83 mm
- Product Net Height
- 51 mm
- Product Net Weight
- 0.09 kg
- Product Net Width
- 51 mm
Ordering
- Last Ordering Date
- 2020-09-30 All Countries
Technical
- Color
- Black
- Conventional Free-air Thermal Current (Ith)
- q = 40 °C 25 A
- Conventional Thermal Current (Ithe)
- Fully Enclosed 25 A
- Enclosure Type
- Not enclosed
- Handle Type
- Basic handle
- Mounting Type
- Snap-on door mounting
- Number of Contacts
- 2
- Number of Poles
- 1
- Pollution Degree
- 3
- Power Loss
- 1.8 W
- Rated Continuous Thermal Current
- 25 A
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Operational Current AC-22A (Ie)
- (500 V) 20 A(690 V) 20 A
- Rated Operational Current AC-23A (Ie)
- (690 V) Three Phase 5.9 A(500 V) Three Phase 8.1 A(230 V) Three Phase 15 A(400 V) Three Phase 15 A
- Rated Operational Power AC-23A (Pe)
- (690 V) Three Phase 4.8 kW(500 V) Three Phase 4.8 kW(230 V) Three Phase 2.6 kW(400 V) Three Phase 7.5 kW
- Rated Operational Voltage
- 690 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 0.3 kAfor 3 s 0.173 kA
- Special Functions
- Change-over switch: With 0-position: 12 o'clock, with two sided spring return, step angle 30°, front plate 1-0-2
- Terminal Type
- Screw Terminals
Technical UL/CSA
- Ampere Rating UL/CSA
- 600 V AC 25 A
