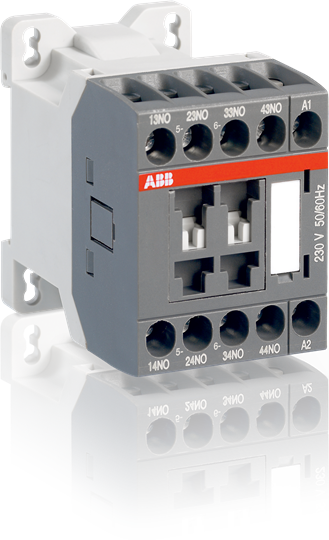

ABB NS40E-23

Classifications

• ETIM 4
  • EC000196 - Contactor relay
• ETIM 5
  • EC000196 - Contactor relay
• IDEA Granular Category Code (IGCC)
  • 4755 >> Contactors
• Object Classification Code
  • K

Container Information

• Package Level 1 Depth / Length
  • 80 mm
• Package Level 1 EAN
  • 3471523002234
• Package Level 1 Gross Weight
  • 0.22 kg
• Package Level 1 Height
  • 48 mm
• Package Level 1 Units
  • 1 piece
• Package Level 1 Width
  • 78 mm
• Package Level 2 Depth / Length
  • 315 mm
• Package Level 2 Gross Weight
  • 8.8 kg
• Package Level 2 Height
  • 195 mm
• Package Level 2 Units
  • 40 piece
• Package Level 2 Width
  • 250 mm
• Package Level 3 Units
  • 960 piece

Dimensions

• Product Net Depth / Length
  • 72.5 mm
• Product Net Height
  • 68 mm
• Product Net Weight
  • 0.22 kg
• Product Net Width
  • 45 mm

Environmental

• Ambient Air Temperature
  • Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... +70 °C
• Climatic Withstand
  • Category B according to IEC 60947-1 Annex Q
• Maximum Operating Altitude Permissible
  • 3000 m
• Resistance to Shock acc. to IEC 60068-2-27
  • Closed, Shock Direction: C1 19 gClosed, Shock Direction: C2 16 gOpen, Shock Direction: C1 8 gOpen, Shock Direction: C2 13 gShock Direction: A 20 gShock Direction: B1 5 gShock Direction: B2 15 g
• Resistance to Vibrations acc. to IEC 60068-2-6
  • 5 ... 300 Hz 3 g Closed position / 2 g Open position
• RoHS Status
  • Following EU Directive 2002/95/EC August 18, 2005 and amendment

Ordering

• Customs Tariff Number
  • 85364900
• Minimum Order Quantity
  • 40 piece

Technical

• Connecting Capacity Auxiliary Circuit
  • Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm²
• Connecting Capacity Control Circuit
  • Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid 1/2x 0.75 ... 2.5 mm²
• Conventional Free-air Thermal Current (Ith)
  • acc. to IEC 60947-5-1, q = 40 °C 10 A
• Degree of Protection
  • acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
• Maximum Electrical Switching Frequency
  • (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
• Maximum Mechanical Switching Frequency
  • 3600 cycles per hour
• Number of Auxiliary Contacts NC
  • 0
• Number of Auxiliary Contacts NO
  • 4
• Operate Time
  • Between Coil De-energization and NC Contact Closing 7 ... 22 msBetween Coil De-energization and NO Contact Opening 5 ... 19 msBetween Coil Energization and NC Contact Opening 6 ... 18 msBetween Coil Energization and NO Contact Closing 9 ... 24 ms
• Rated Control Circuit Voltage (Uc)
  • 50 Hz 110 V60 Hz 110 V
• Rated Frequency (f)
  • Auxiliary Circuit 50 / 60 Hz
• Rated Impulse Withstand Voltage (Uimp)
  • 6 kV
• Rated Insulation Voltage (Ui)
  • acc. to UL/CSA 600 Vacc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
• Rated Operational Current AC-15 (Ie)
  • (220 / 240 V) 4 A(24 / 127 V) 6 A(400 / 440 V) 3 A(500 V) 2 A(690 V) 2 A
• Rated Operational Current DC-13 (Ie)
  • (110 V) 0.55 A / 60 W(220 V) 0.27 A / 60 W(125 V) 0.55 A / 69 W(24 V) 6 A / 144 W(250 V) 0.27 A / 68 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W
• Rated Operational Voltage
  • Auxiliary Circuit 690 VMain Circuit 690 V
• Rated Short-time Withstand Current (Icw)
  • for 0.1 s 140 Afor 1 s 100 A
• Standards
  • IEC 60947-5-1 and EN 60947-5-1, UL 508, CSA C22.2 N°14
• Terminal Type
  • Screw Terminals
• Wire Stripping Length
  • Auxiliary Circuit 9 mmControl Circuit 9 mm

Technical UL/CSA

• Tightening Torque UL/CSA
  • Auxiliary Circuit 9 in·lbControl Circuit 9 in·lb
