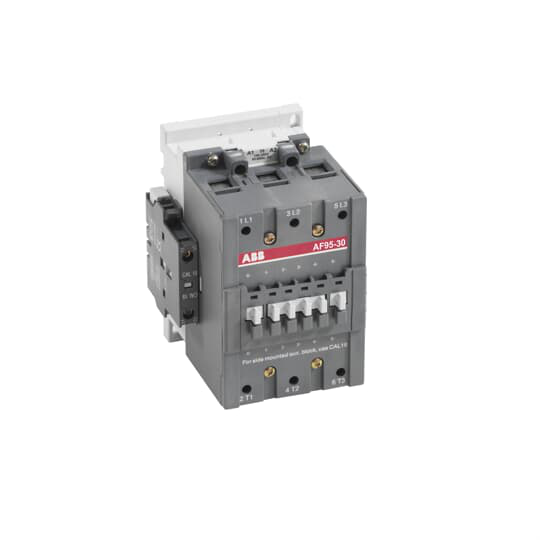

ABB AF95-30-11-70

Classifications

• eClass
  • V11.0 : 27371003
• ETIM 4
  • EC000066 - Magnet contactor, AC-switching
• ETIM 5
  • EC000066 - Magnet contactor, AC-switching
• IDEA Granular Category Code (IGCC)
  • 4763 >> Power contactor, DC switching
• Object Classification Code
  • Q

Dimensions

• Product Net Depth / Length
  • 123.5 mm
• Product Net Height
  • 148 mm
• Product Net Weight
  • 1.9 kg
• Product Net Width
  • 102 mm

Environmental

• Ambient Air Temperature
  • Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
• Maximum Operating Altitude Permissible
  • Without Derating 3000 m
• Resistance to Shock acc. to IEC 60068-2-27
  • Half-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: A 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: B1 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Closed, Shock Direction: C2 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B1 5 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: B2 15 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C1 20 gHalf-sine Pulse for 11 ms, No Change in Contact Position, Open, Shock Direction: C2 20 g
• RoHS Status
  • Following EU Directive 2011/65/EU

Ordering

• Customs Tariff Number
  • 85364900
• Minimum Order Quantity
  • 1 piece
• Replacement Product ID (NEW)
  • 1SBL407001R1311

Technical

• Coil Consumption
  • Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 7 V·AHolding at Max. Rated Control Circuit Voltage DC 2 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 350 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 350 V·APull-in at Max. Rated Control Circuit Voltage DC 400 W
• Coil Operating Limits
  • (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
• Connecting Capacity Auxiliary Circuit
  • Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 1x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
• Connecting Capacity Main Circuit
  • Bar 30 mm²Flexible with Cable End 1 x 10 ... 70 mm²Rigid 2 x 6 ... 65 mm²
• Connecting Terminals (delivered in open position) Main Poles
  • M8 hexagon socket screw with single connector
• Conventional Free-air Thermal Current (Ith)
  • acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 145 A
• Degree of Protection
  • acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
• Maximum Breaking Capacity
  • cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1160 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 800 A
• Maximum Electrical Switching Frequency
  • (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour
• Maximum Mechanical Switching Frequency
  • 300 cycles per hour
• Mechanical Durability
  • 10 million
• Number of Auxiliary Contacts NC
  • 1
• Number of Auxiliary Contacts NO
  • 1
• Number of Main Contacts NC
  • 0
• Number of Main Contacts NO
  • 3
• Operate Time
  • Between Coil De-energization and NC Contact Closing 60 ... 130 msBetween Coil De-energization and NO Contact Opening 55 ... 125 msBetween Coil Energization and NC Contact Opening 27 ... 77 msBetween Coil Energization and NO Contact Closing 30 ... 80 ms
• Rated Breaking Capacity AC-3
  • 8 x Ie AC-3
• Rated Control Circuit Voltage (Uc)
  • 50 Hz 100...250 V60 Hz 100...250 VDC Operation 100...250 V
• Rated Frequency (f)
  • Main Circuit 50 / 60 Hz
• Rated Impulse Withstand Voltage (Uimp)
  • Main Circuit 8 kV
• Rated Insulation Voltage (Ui)
  • acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
• Rated Making Capacity AC-3
  • 10 x Ie AC-3
• Rated Operational Current AC-1 (Ie)
  • (690 V) 40 °C 145 A(690 V) 55 °C 135 A(690 V) 70 °C 115 A
• Rated Operational Current AC-3 (Ie)
  • (415 V) 55 °C 96 A(440 V) 55 °C 93 A(500 V) 55 °C 80 A(690 V) 55 °C 65 A(1000 V) 55 °C 30 A(380 / 400 V) 55 °C 96 A(220 / 230 / 240 V) 55 °C 96
• Rated Operational Current DC-1 (Ie)
  • (110 V) 2 Poles in Series, 40 °C 145 A(220 V) 3 Poles in Series, 40 °C 145 A
• Rated Operational Current DC-3 (Ie)
  • (110 V) 2 Poles in Series, 40 °C 145 A(220 V) 3 Poles in Series, 40 °C 145 A
• Rated Operational Current DC-5 (Ie)
  • (110 V) 2 Poles in Series, 40 °C 145 A(220 V) 3 Poles in Series, 40 °C 145 A
• Rated Operational Power AC-3 (Pe)
  • (415 V) 55 kW(440 V) 55 kW(500 V) 55 kW(690 V) 55 kW(1000 V) 40 kW(380 / 400 V) 45 kW(220 / 230 / 240 V) 25 kW
• Rated Operational Voltage
  • Main Circuit 1000 V
• Short-Circuit Protective Devices
  • gG Type Fuses 160 A
• Terminal Type
  • Cable Clamp

Technical UL/CSA

• General Use Rating UL/CSA
  • (600 V AC) 125 A
• Horsepower Rating UL/CSA
  • (200 V AC) Three Phase 30 hp(208 V AC) Three Phase 30 hp(220 ... 240 V AC) Three Phase 30 hp(440 ... 480 V AC) Three Phase 60 hp(550 ... 600 V AC) Three Phase 75 hp
• Maximum Operating Voltage UL/CSA
  • Main Circuit 600 V
