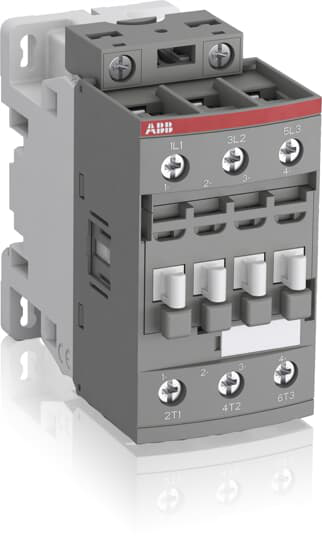

ABB AF26N1-30-00-13

Classifications

• eClass
  • V11.0 : 27371003
• ETIM 9
  • EC000066 - Power contactor, AC switching
• Object Classification Code
  • Q

Dimensions

• Product Net Depth / Length
  • 86 mm
• Product Net Height
  • 86 mm
• Product Net Weight
  • 0.31 kg
• Product Net Width
  • 45 mm

Environmental

• Ambient Air Temperature
  • Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
• Climatic Withstand
  • Category B according to IEC 60947-1 Annex Q
• Conventional Free-air Thermal Current (Ith)
  • acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 50 A
• Degree of Protection
  • acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
• Maximum Operating Altitude Permissible
  • Without Derating 3000 m
• Resistance to Shock acc. to IEC 60068-2-27
  • Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g
• Resistance to Vibrations acc. to IEC 60068-2-6
  • 5 ... 300 Hz 4 g closed position / 2 g open position
• RoHS Information
  • 2CMT2021-006277
• WEEE Category
  • Product Not in WEEE Scope

Ordering

• Customs Tariff Number
  • 85364900
• Minimum Order Quantity
  • 1 piece
• Product Main Type
  • AF26N1

Technical

• Connecting Capacity Control Circuit
  • Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
• Connecting Capacity Main Circuit
  • Flexible with Ferrule 1/2x 1.5 ... 10 mm²Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²Flexible with Insulated Ferrule 2x 1.5 ... 4 mm²Rigid Solid 1/2x 2.5 ... 4 mm²Rigid Stranded 1/2x 2.5 ... 10 mm²
• Maximum Breaking Capacity
  • cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
• Maximum Electrical Switching Frequency
  • (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour
• Maximum Mechanical Switching Frequency
  • 3600 cycles per hour
• Minimum Mounting Distance
  • Other Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 0 mm
• Mounted Auxiliary Contacts
  • 0 NO, 0 NC
• Mounting by Screws (not supplied)
  • 2 x M4 screws placed diagonally
• Mounting on DIN Rail
  • TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
• Mounting Position
  • 1, 1 +/-30°, 2, 3, 4, 5
• Number of Auxiliary Contacts NC
  • 0
• Number of Auxiliary Contacts NO
  • 0
• Number of Main Contacts NC
  • 0
• Number of Main Contacts NO
  • 3
• Number of Poles
  • 3
• Operate Time
  • Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
• Pollution Degree
  • 3
• Power Loss
  • at Rated Operating Conditions AC-1 per Pole 1.8 Wat Rated Operating Conditions AC-3 per Pole 0.6 W
• Rated Control Circuit Voltage (Uc)
  • 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
• Rated Frequency (f)
  • Control Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
• Rated Impulse Withstand Voltage (Uimp)
  • 6 kV
• Rated Insulation Voltage (Ui)
  • acc. to IEC 60947-4-1 690 Vacc. to UL/CSA 600 V
• Rated Operational Current AC-1 (Ie)
  • (690 V) 40 °C 45 A(690 V) 60 °C 40 A(690 V) 70 °C 32 A
• Rated Operational Current AC-3e (Ie)
  • (415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A
• Rated Operational Current AC-3 (Ie)
  • (415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A
• Rated Operational Power AC-3e (Pe)
  • (415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW
• Rated Operational Power AC-3 (Pe)
  • (400 V) 11 kW(415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW
• Rated Operational Voltage
  • Main Circuit 690 V
• Rated Short-time Withstand Current Low Voltage (Icw)
  • at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
• Standards
  • IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
• Terminal Type
  • Screw Terminals
• Tightening Torque
  • Control Circuit 1.2 N·mMain Circuit 2.5 N·m
• Wire Stripping Length
  • Control Circuit 10 mmMain Circuit 14 mm

Technical UL/CSA

• Connecting Capacity Control Circuit UL/CSA
  • Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
• Connecting Capacity Main Circuit UL/CSA
  • Rigid Solid 1/2x 14-10 AWGRigid Stranded 1/2x 14-8 AWG
• Continuous Current Rating NEMA
  • 27 A
• Full Load Amps Motor Use
  • (120 V AC) Single Phase 2 A(200 ... 208 V AC) Three Phase 7-1/2 A(220 ... 240 V AC) Three Phase 7-1/2 A(240 V AC) Single Phase 3 A(440 ... 480 V AC) Three Phase 15 A(550 ... 600 V AC) Three Phase 20 A
• General Use Rating UL/CSA
  • (600 V AC) 45 A
• Horsepower Rating NEMA
  • (115 V AC) Single Phase 2 Hp(200 V AC) Three Phase 7-1/2 Hp(230 V AC) Single Phase 3 Hp(230 V AC) Three Phase 7-1/2 Hp(460 V AC) Three Phase 10 Hp(575 V AC) Three Phase 10 Hp
• Maximum Operating Voltage UL/CSA
  • Main Circuit 600 V
• NEMA Size
  • 1
• Tightening Torque UL/CSA
  • Control Circuit 11 in·lbMain Circuit 22 in·lb
