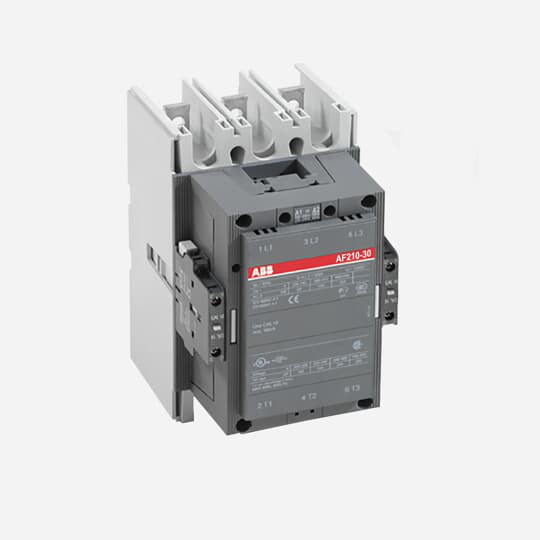

ABB AF210-30-11-72

Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ABB AF210-30-11-72 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371003
- E-Number (Norway)
- 4115277
- E-Number (Sweden)
- 3228302
- ETIM 4
- EC000066 - Magnet contactor, AC-switching
- ETIM 5
- EC000066 - Magnet contactor, AC-switching
- IDEA Granular Category Code (IGCC)
- 4755 >> Contactors
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 180.5 mm
- Product Net Height
- 227 mm
- Product Net Weight
- 5.05 kg
- Product Net Width
- 140 mm
Environmental
- Ambient Air Temperature
- Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... 70 °C
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- Resistance to Shock acc. to IEC 60068-2-27
- Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
- Replacement Product ID (NEW)
- 1SFL527002R1111
Technical
- Coil Consumption
- Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 10 V·AHolding at Max. Rated Control Circuit Voltage DC 2 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 470 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 470 V·APull-in at Max. Rated Control Circuit Voltage DC 520 W
- Coil Operating Limits
- (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
- Connecting Capacity Main Circuit
- Bar 32 mm²Rigid Al-Cable 2 x 95 ... 120 mm²Rigid Cu-Cable 16 ... 240 mm²
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 350 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
- Maximum Breaking Capacity
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2200 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 2000 A
- Maximum Electrical Switching Frequency
- (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour
- Maximum Mechanical Switching Frequency
- 300 cycles per hour
- Mechanical Durability
- 5 million
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 3
- Operate Time
- Between Coil De-energization and NC Contact Closing 40 .... 50 msBetween Coil De-energization and NO Contact Opening 43 ... 53 msBetween Coil Energization and NC Contact Opening 45 ... 85 msBetween Coil Energization and NO Contact Closing 50 ... 90 ms
- Rated Breaking Capacity AC-3
- 8 x Ie AC-3
- Rated Control Circuit Voltage (Uc)
- DC Operation 20 ... 60 V
- Rated Frequency (f)
- Main Circuit 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 8 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
- Rated Making Capacity AC-3
- 10 x Ie AC-3
- Rated Operational Current AC-1 (Ie)
- (690 V) 40 °C 350 A(690 V) 55 °C 300 A(690 V) 70 °C 240 A
- Rated Operational Current AC-3 (Ie)
- (415 V) 55 °C 210 A(440 V) 55 °C 210 A(500 V) 55 °C 210 A(690 V) 55 °C 210 A(380 / 400 V) 55 °C 210 A(220 / 230 / 240 V) 55 °C 210
- Rated Operational Current DC-1 (Ie)
- (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A
- Rated Operational Current DC-3 (Ie)
- (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A
- Rated Operational Current DC-5 (Ie)
- (110 V) 2 Poles in Series, 40 °C 350 A(220 V) 3 Poles in Series, 40 °C 350 A
- Rated Operational Power AC-3 (Pe)
- (415 V) 110 kW(440 V) 110 kW(500 V) 132 kW(690 V) 160 kW(380 / 400 V) 110 kW(220 / 230 / 240 V) 59 kW
- Rated Operational Voltage
- Main Circuit 690 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1200 A
- Short-Circuit Protective Devices
- gG Type Fuses 400 A
- Terminal Type
- Main Circuit: Bars
Technical UL/CSA
- General Use Rating UL/CSA
- (600 V AC) 300 A
- Horsepower Rating UL/CSA
- (200 V AC) Three Phase 60 hp(208 V AC) Three Phase 60 hp(220 ... 240 V AC) Three Phase 75 hp(440 ... 480 V AC) Three Phase 150 hp(550 ... 600 V AC) Three Phase 200 hp
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
