ABB 2TLA019995R0200
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

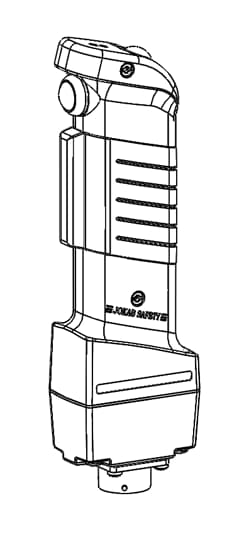

The JSHD4-2-AB is an ergonomic three-position device which top part has LEDs, a front button and a top button, and which bottom part is equipped with a Cannon connector.JSHD4-2-AB Three-position handheld device - Complete
ABB 2TLA019995R0200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371238
- E-Number (Finland)
- 2307362
- E-Number (Sweden)
- 3705153
- ETIM 9
- EC002571 - Agreement switch
- Object Classification Code
- B
Dimensions
- Product Net Depth / Length
- 60 mm
- Product Net Height
- 200 mm
- Product Net Weight
- 0.334 kg
- Product Net Width
- 34 mm
Environmental
- Ambient Air Temperature
- Operation -10 ... +70 °C
- Degree of Protection
- IP65
- Material
- Handle: Polyamide and NorylRubber: Neoprene
Ordering
- Customs Tariff Number
- 8536909599
- Function
- Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area.
- Minimum Order Quantity
- 1 piece
- Product Main Type
- JSHD4
- Product Name
- Three-position handheld device - Complete
- Status Indicator
- Yes
- Sub-Function
- 1 front and 1 top auxiliary buttons
Safety Information
- B10d Value
- Operations to Bottom Position 968 000Operations to Middle Position 2 million
- Performance Level (PL)
- Up to e
Technical
- Communication Interface
- Contacts
- Connection Configuration
- Cannon 12 male pins
- Maximum Switching Current
- Main Circuit 0.02 mA
- Maximum Switching Voltage
- Main Circuit 30 V
- Minimum Switching Capacity
- Main Circuit 8 mA, 10 VDC
- Number of Contacts CO
- 2
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Rated Operational Current DC-12 (Ie)
- (24 V) 0.02 A
- Rated Operational Voltage
- 24 V DC
- Technical Information
- Operating force: Approx. 15 N for three-position button (ON), Approx. 45 N for three-position button (OFF), Approx. 2.5 N for top/front pushbutton; Mechanical service life: 1 million cycles, top to middle position, 100 000 cycles, middle to bottom position, and top/front push button
Technical UL/CSA
- Enclosure Type UL/CSA
- 1
