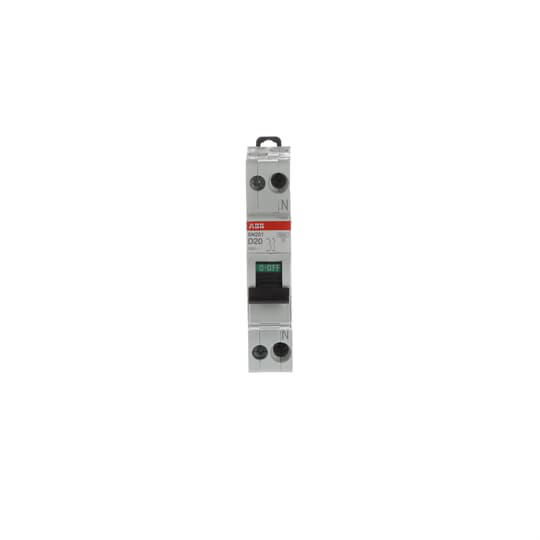

ABB 2CSS255101R0201
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The SN201 series miniature circuit breaker is a 1P+N device in 1 module for the protection of circuits against overload and short circuit. Neutral is on the rightSN201-D20 Miniature circuit breaker - 1+NP - D - 20 A
ABB 2CSS255101R0201 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85362010
- eClass
- V11.0 : 27141901
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Product Net Depth / Length
- 0.069 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.110 kg
- Product Net Width
- 0.018 m
- Width in Number of Modular Spacings
- 1
Environmental
- Ambient Air Temperature
- Operation -25 … 55 °C
- Ambient Temperature
- -25...55 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Conditions
- 28 cycles;with 55 °C / 90-96 %;and 25 °C / 95-100 %
- Environmental Information
- refer to RoHS information
- Pollution Degree
- 2
- Reference Ambient Air Temperature
- 30 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 30g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 0.35mm or 5g - 20 cycles at 5…150…5 Hz without load
- RoHS Information
- 9AKK106713A5572
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- No document needed
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.684 kg
- Package Level 1 Units
- box 6 piece
Technical
- Accessories Available
- Yes
- Accessory Type
- Auxiliary contactSignal contact / auxiliary contactShunt tripUndervoltage release
- Actuator Type
- Toggle - Insulation group IIIA, black, sealable in ON-OFF positions
- Connecting Capacity
- Flexible 1 … 10 mm²Rigid 1 … 16 mm²
- Contact Position Indication
- Red ON / Green OFF
- Dielectric Test Voltage
- 2 kV
- Electrical Endurance
- 10000 cycle
- Energy Limiting Class
- 3
- Housing Type
- Insulation group II, RAL 7035
- Input Voltage Type
- AC
- Mechanical Endurance
- 20000 cycle
- Mounting Position
- Any
- Number of Modular Spacings per DIN Rail
- 1
- Number of Poles
- 1+N
- Number of Protected Poles
- 1
- Overvoltage Category
- III
- Position of Neutral Terminals
- Right
- Power Loss
- 4.8 W
- Power Supply Connection
- Arbitrary
- Primary Rated Impulse Withstand Voltage
- 4 kV
- Rated Current (In)
- 20 A
- Rated Frequency (f)
- 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 500 V
- Rated Operational Voltage
- acc. to IEC 60898-1 230 V
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (230 V AC) 6 kA
- Rated Short-Circuit Capacity
- (230 V) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V) 10 kA
- Rated Voltage (Ur)
- 230 V AC
- Screw Terminal Type
- Cage Terminal
- Standards
- IEC/EN 60898-1
- Terminal Type
- Screw Terminals
- Tightening Torque
- 1.2 N·m
- Tripping Characteristic
- D
- Wire Stripping Length
- 11 mm
