ABB 2CSS204997R0013
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

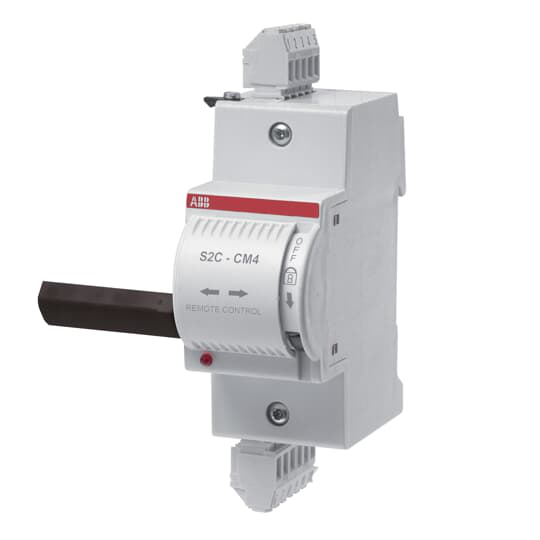

The S2C-CM4 motor operating device has the function to allow the remote control (opening or closing) of the MCB it is associated to. It can assembled to 4 pole MCBs of S200 range.S2C-CM4 Motor operating device
ABB 2CSS204997R0013 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85365080
- eClass
- V11.0 : 27143502
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- Object Classification Code
- Q
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 0.081 m
- Product Net Height
- 0.089 m
- Product Net Weight
- 0.173 kg
- Product Net Width
- 36 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- Enclosure with Cover IP20
- Environmental Information
- Refer to RoHS
- Pollution Degree
- 2
- RoHS Information
- 9AKK106713A5575
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 9AKK107680A3323
Ordering
- E-Number (Sweden)
- 2102494
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.242 kg
- Package Level 1 Units
- box 1 piece
Technical
- Connecting Capacity
- 2.5 mm²
- Electrical Endurance
- 20000 cycle
- Input Voltage Type
- AC/DC
- Mounting Type
- DIN-Rail
- Number of Auxiliary Contacts CO (SPDT)
- 1
- Number of Contacts CO
- 1
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Operational Voltage
- 12 … 30 +10% –15% V AC12 … 48 +10% –15% V DC
- Power Consumption (@Pcons)
- 12 V AC - < 16 V·A24 V AC - < 27 V·A30 V AC - < 28 V·A12…48 V DC - < 22 V·A
- Power Loss
- 1.5 W
- Rated Frequency (f)
- AC 50 … 60 Hz
- Rated Voltage (Ur)
- 12 V
- Suitable For
- S204PS304P
- Suitable for Product Class
- Miniature Circuit Breakers MCBs
- Terminal Type
- Screw Terminals
