Description

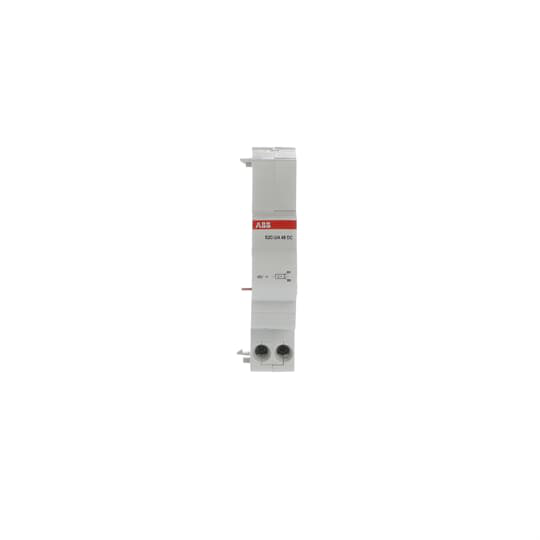

The S2C-UA 48 DC undervoltage release has the function to protect the load in case of a voltage drop included between 70% and 35% of its rated value. Positive safety (device tripping when the voltage is disconnected) emergency stop by means of a button. Suitable for MCBs S200 series, RCCBs F200 series and RCBOs DS201, DS202C, DS200 series. It can be used with MCBs SN201 series by means of SN201-IH interface module. Rated voltage: 48V d.c.S2C-UA 48 DC Undervoltage release
ABB 2CSS200911R0008 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85389099
- eClass
- V11.0 : 27143502
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- IDEA Granular Category Code (IGCC)
- 4148 >> Under voltage coil
- Object Classification Code
- Q
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 0.074 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.090 kg
- Product Net Width
- 18 mm
Environmental
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Environmental Information
- document not needed
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 2CSS490001D0010
Ordering
- E-Number (Finland)
- 3210847
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.1 kg
- Package Level 1 Units
- box 1 piece
Technical
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Number of Switches
- 1
- Power Loss
- 2.1 W
- Rated Voltage (Ur)
- 48 V
- Suitable For
- S200S300PSN201F200DS201DS202CDS200DS203NCDSE201 MSD200DS-ARC1S-ARC1
- Suitable for Product Class
- Miniature Circuit Breakers MCBsResidual Current Devices RCDsResidual Current Breakers with Overload Protection RCBo
