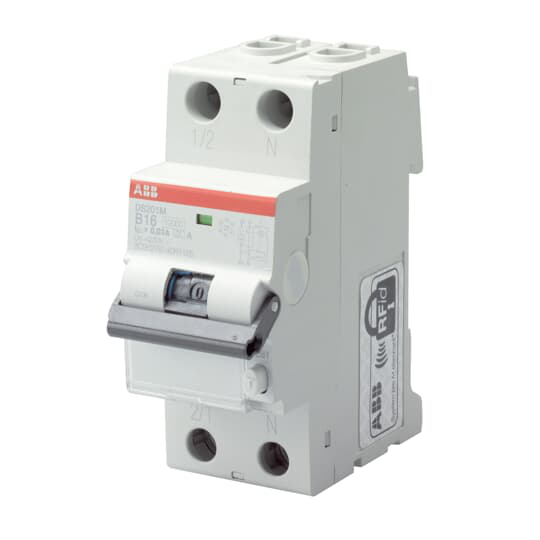

ABB 2CSR275040R1064
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The DS201 series RCBO is a 1P+N in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).DS201 M C6 AC30 - RCBO
ABB 2CSR275040R1064 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000905 - Earth leakage circuit breaker
- ETIM 5
- EC000905 - Earth leakage circuit breaker
- ETIM 6
- EC000905 - Earth leakage circuit breaker
- ETIM 7
- EC000905 - Earth leakage circuit breaker
- Object Classification Code
- Q
Container Information
- Package Level 1 Depth / Length
- 0.080 m
- Package Level 1 EAN
- 8012542999706
- Package Level 1 Gross Weight
- 0.225 kg
- Package Level 1 Height
- 0.106 m
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 0.040 m
- Package Level 2 Depth / Length
- 0.080 m
- Package Level 2 EAN
- 8012542999713
- Package Level 2 Gross Weight
- 1.125 kg
- Package Level 2 Height
- 0.106 m
- Package Level 2 Units
- 5 piece
- Package Level 2 Width
- 0.200 m
Dimensions
- Product Net Depth / Length
- 0.069 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.239 kg
- Product Net Width
- 0.035 m
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85363010
- Minimum Order Quantity
- 1 piece
- Replacement Product ID (NEW)
- 2CSR275080R1064
Technical
- Connecting Capacity
- Busbar 10 mm²Rigid 25 …25 mm²Flexible 25 …25 mm²
- Degree of Protection
- IP2X
- Electrical Endurance
- 10000 cycle
- Energy Limiting Class
- 3
- Mechanical Endurance (Nendu)
- 20000 cycle
- Number of Poles
- 1+N
- Number of Protected Poles
- 1
- Overvoltage Category
- III
- Pollution Degree
- 2
- Position of Neutral Terminals
- Right
- Power Loss
- 4.4 W
- Power Supply Connection
- Arbitrary
- Rated Current (In)
- 6 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Short-Circuit Capacity (Icn)
- (230 / 400 V AC) 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- 10 kA
- Rated Voltage (Ur)
- 230-240 V AC
- Standards
- IEC 61009-1IEC 61009-2-1EN 61009-1EN 61009-2-1
- Tripping Characteristic
- C
- Type of Residual Current
- AC type
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 A
