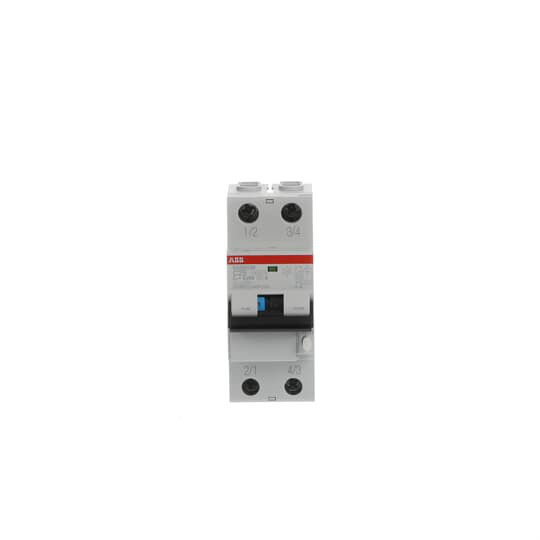

ABB 2CSR272140R1254
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).DS202C M C25 A30 Residual Current Circuit Breaker with Overcurrent Protection
ABB 2CSR272140R1254 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85363030
- eClass
- V11.0 : 27142207
- ETIM 9
- EC000905 - Earth leakage circuit breaker
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Product Net Depth / Length
- 0.069 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.225 kg
- Product Net Width
- 0.035 m
- Width in Number of Modular Spacings
- 2
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
- Ambient Temperature
- -25...55 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP2X
- Environmental Information
- 9AKK107680A8583
- Pollution Degree
- 2
- RoHS Information
- 2CSC422002K2701
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 9AKK106354A0766
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.239 kg
- Package Level 1 Units
- box 1 piece
- Replacement Product ID (NEW)
- 2CSR772140R1254
Technical
- Accessories Available
- Yes
- Connecting Capacity
- Busbar 10 mm²Rigid 25 ... 25 mm²Flexible 25 ... 25 mm²
- Earthing Switch Type
- Undelayed
- Electrical Endurance
- 10000 cycle
- Energy Limiting Class
- 3
- Frequency (f)
- 50/60 Hz
- Input Voltage Type
- AC
- Leakage Current Type
- A
- Mechanical Endurance
- 20000 cycle
- Number of Poles
- 2
- Number of Protected Poles
- 2
- Operating Characteristic
- Instantaneous
- Options Provided
- null
- Overvoltage Category
- III
- Position of Neutral Terminals
- RightLeft
- Power Loss
- 5.5 W
- Power Supply Connection
- Arbitrary
- Rated Conditional Short-Circuit Current (Inc)
- 10 kA
- Rated Cross-Section
- 4 - Multi-Wired 1...25 mm²1 - Solid-Core 25...25 mm²
- Rated Current (In)
- 25 A
- Rated Frequency (f)
- 50 … 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Operational Voltage
- 230 / 240 V AC
- Rated Residual Current
- 30 mA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 10 kA
- Rated Short-Circuit Capacity
- 10 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- 10 kA
- Rated Voltage (Ur)
- 230-240 V AC
- Release Type
- C
- Standards
- IEC 61009-1IEC 61009-2-1EN 61009-1EN 61009-2-1
- Tripping Characteristic
- C
- Type of Residual Current
- A type
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 A
