ABB 2CSM200923R1801
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

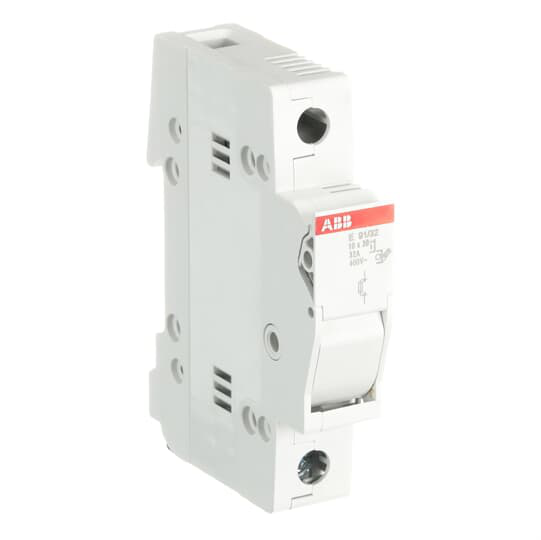

E 91/32 is a fuseholder for overcurrent and short circuit protection. No blown fuse indicator.E 91/32 Fuse switch disconnector
ABB 2CSM200923R1801 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85361050
- eClass
- V11.0 : 27142121
- ETIM 9
- EC002705 - Holder for cylindrical fuse
- IDEA Granular Category Code (IGCC)
- 5291 >> Fuse switch disconnector
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 64 mm
- Product Net Depth / Length
- 0.064 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.061 kg
- Product Net Width
- 0.018 m
- Width in Number of Modular Spacings
- 1
Environmental
- Ambient Air Temperature
- Operation -5...+40 °CStorage -25...+70 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- See RoHS Information
- Maximum Operating Altitude Permissible
- 2000 m
- REACH Declaration
- 9AKK108467A9482
- Resistance to Shock acc. to IEC 60068-2-27
- 15g 18 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 2 to 13 Hz x= 1 mm peak13 to 100 Hz y= 0.7 g peak
- RoHS Information
- 9AKK106713A5623
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Installation
- Instructions and Manuals
- No document needed
Ordering
- E-Number (Finland)
- 3017004
- E-Number (Sweden)
- 2318050
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.369 kg
- Package Level 1 Units
- box 6 piece
Technical
- Connecting Capacity
- Rigid 2x5 mm²Stranded 2x2-5 mm²
- Fuse Size
- 10x38 mm
- Lock Type
- Padlockable when open
- Material of Conductor
- Copper
- Mounting Type
- DIN-Rail
- Number of Poles
- 1
- Number of Protected Poles
- 1
- Operating Humidity (RHamb)
- max. 90% with temp. +20 °C50% with max. temp. +40 °C
- Options Provided
- No
- Power Loss
- at Rated Operating Conditions per Pole 3 W
- Rated Frequency (f)
- 50/60 Hz
- Rated Insulation Voltage (Ui)
- 1 kV
- Rated Operational Current AC (Ie)
- 32 A
- Rated Operational Voltage
- AC-20B 690 V|AC-22B 400 V
- Rated Voltage (Ur)
- acc. To IEC 400 Vacc. To UL 690 V
- Recommended Screw Driver
- Pozidriv 2
- Sealing Type
- Sealing Wire
- Shock and Vibration Withstand acc. to IEC 61373
- Category 1, Class B
- Standards
- IEC 60947-3
- Tightening Torque
- 2...2.5 N·m
- Utilization Category
- Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)Switching of mixed resistive and inductive loads, including moderate overloads - occasional actuation (AC-22B)
Technical UL/CSA
- Connecting Capacity UL/CSA
- Rigid 2x10 AWGStranded 2x14-10 AWG
