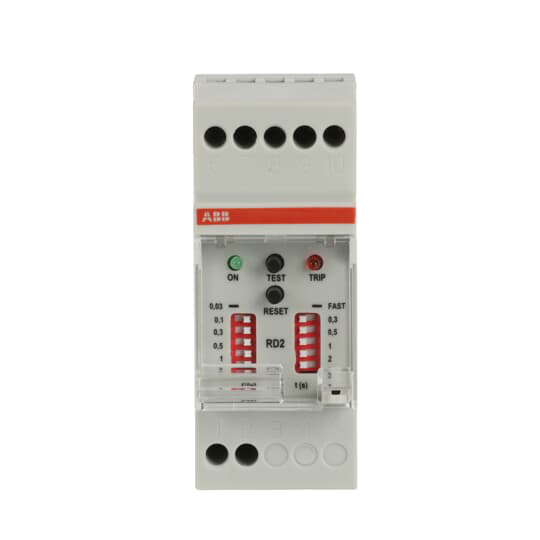

ABB 2CSM142120R1201
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Residual current monitors (RCMs) with external transformer can detect leakage currents. Through minidip you can set sensitivity and intervention time. Operating voltage: 230…400V a.c.RD2 Residual Current Monitor
ABB 2CSM142120R1201 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85364190
- eClass
- V11.0 : 27371809
- ETIM 9
- EC001445 - Residual current monitoring relay
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 65 mm
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.105 kg
- Product Net Width
- 35 mm
Environmental
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- RoHS Information
- 9AKK106713A5627
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 0400 - 9924
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.15 kg
- Package Level 1 Units
- box 1 piece
Technical
- Current Rating
- Response value amperage 1 2000 ... 2000 mA
- Delay Time (τ)
- Delay-On Energization, Maximum, Permitted 5 second [unit of time]Delay-On Energization, Minimum, Adjustable 0.3 second [unit of time]
- Filter Option
- no frequency filter
- Function
- For AC-current system
- Mounting Type
- DIN-Rail
- Number of Contacts
- 1
- Number of Contacts CO
- 1
- Number of Contacts NC
- 0
- Number of Contacts NO
- 0
- Options Provided
- Pre-alarm threshold: no
- Power Loss
- 3.4 W
- Rated Control Supply Voltage (Us)
- (50 Hz) 400...400 V(60 Hz) 400...400 V
- Rated Frequency (f)
- 50 … 60 Hz
- Rated Operational Voltage
- 230 ... 400 V AC
- Rated Voltage (Ur)
- 400...400 V
- Standards
- IEC EN 62020
- Type of Residual Current
- A type
