Description

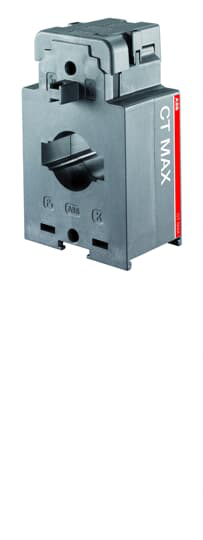

CT MAX 1000 SELV is used to transform primary currents to../5A secondary currents for c.a. measurement instrumentsCT MAX 1000 SELV Current transformer
ABB 2CSG226055R1101 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 90303100
- eClass
- V11.0 : 27210902
- ETIM 9
- EC002048 - Current transformer
- Object Classification Code
- P
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 26.5 mm
- Product Net Weight
- 0.37 kg
- Product Net Width
- 0.070 m
Environmental
- Ambient Air Temperature
- Operation -5 ... 50 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP30
- Environmental Information
- See RoHS Information
- RoHS Information
- 2CSC445004K2701
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CSC446012B0201
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.5 kg
- Package Level 1 Units
- box 1 piece
Technical
- Accuracy
- ±0,5%
- Additional Information
- Selv
- Apparent Power Output
- 100 V·A
- Cable Cross-Section
- 30 mm
- Cable Use
- Cable and Horizontal bar
- Current Limit Function
- FS 5
- Current Rating
- 1000 A
- Frequency (f)
- 50 ... 60 Hz
- Model Number
- Through-feed current converter
- Mounting Type
- Through Primary
- Power Loss
- 5 W
- Rated Cross-Section
- 40 x 10 mm
- Rated Primary Current (Ipn)
- 1000 A
- Rated Secondary Current (Isn)
- 5 A
- Secondary Output Connection
- Screw connection
