ABB 2CSG225945R1101
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

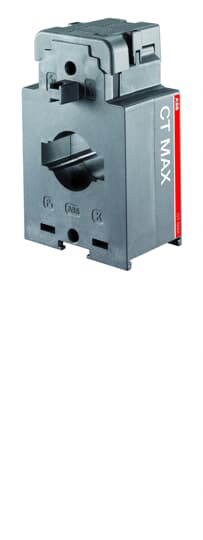

CT MAX 300 is used to transform primary currents to../5A secondary currents for c.a. measurement instrumentsCT MAX 300 Current transformer
ABB 2CSG225945R1101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 90303100
- eClass
- V11.0 : 27210902
- ETIM 9
- EC002048 - Current transformer
- Object Classification Code
- P
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 26.5 mm
- Product Net Weight
- 0.32 kg
- Product Net Width
- 0.070 m
Environmental
- Ambient Air Temperature
- Operation -5 ... 50 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP30
- Environmental Information
- See RoHS Information
- RoHS Information
- 2CSC445004K2701
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CSC446012B0201
Ordering
- E-Number (Finland)
- 6701039
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.5 kg
- Package Level 1 Units
- box 1 piece
Technical
- Accuracy
- ±0,5%
- Apparent Power Output
- 25 V·A
- Cable Cross-Section
- 30 mm
- Cable Use
- Cable and Horizontal bar
- Current Limit Function
- FS 5
- Current Rating
- 300 A
- Frequency (f)
- 50 ... 60 Hz
- Model Number
- Through-feed current converter
- Mounting Type
- Through Primary
- Power Loss
- 5 W
- Rated Cross-Section
- 40 x 10 mm
- Rated Primary Current (Ipn)
- 300 A
- Rated Secondary Current (Isn)
- 5 A
- Secondary Output Connection
- Screw connection
