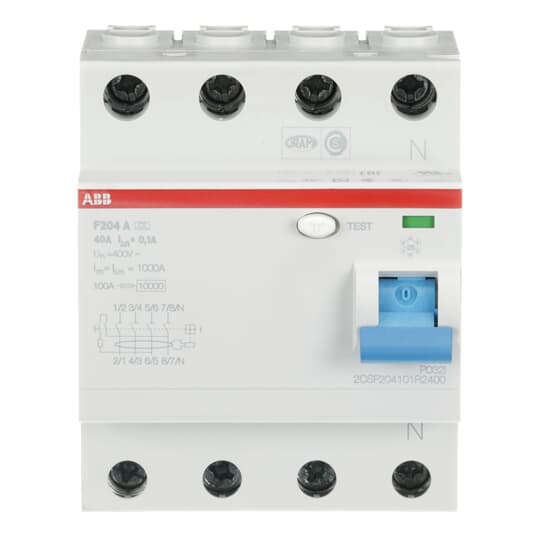

ABB 2CSF204101R2400
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.F204 A-40/0.1 Residual Current Circuit Breaker 4P A type 100 mA
ABB 2CSF204101R2400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 52,5 %
- End of Life Instructions
- 9AKK108468A4361
- Sustainable Material Content
- 0 %
Classifications
- CN8
- 85363030
- eClass
- V11.0 : 27142201
- EPLAN Function Definition
- Ground fault current circuit-breaker / Ground fault current circuit breakers, 8 connection points / Ground fault current circuit breaker, four-pole 1_2_3_4_5_6_N_N.
- ETIM 9
- EC000003 - Residual current circuit breaker (RCCB)
- IDEA Granular Category Code (IGCC)
- 4875 >> Residual current circuit breaker (RCCB)
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Product Net Depth / Length
- 0.069 m
- Product Net Height
- 0.085 m
- Product Net Weight
- 0.360 kg
- Product Net Width
- 0.070 m
- Width in Number of Modular Spacings
- 4
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108467A3700
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
- Ambient Temperature
- -25...55 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP2X
- Environmental Information
- Refer to RoHS
- Pollution Degree
- 2
- REACH Declaration
- 9AKK108467A9482
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
- RoHS Information
- 9AKK106713A5602
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Installation
- Instructions and Manuals
- 9AKK107991A6127
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.415 kg
- Package Level 1 Units
- box 1 piece
Technical
- Accessories Available
- Yes
- Connecting Capacity
- Busbar 10 mm²Rigid 25 ... 25 mm²Flexible 25 ... 25 mm²
- Electrical Endurance
- 10000 cycle
- Input Voltage Type
- AC
- Leakage Current Type
- A
- Mounting Type
- DIN-Rail
- Number of Poles
- 4
- Operating Characteristic
- Instantaneous
- Options Provided
- null
- Position of Neutral Terminals
- Right
- Power Loss
- at Rated Operating Conditions per Pole 3.2 W
- Power Supply Connection
- Arbitrary
- Rated Conditional Short-Circuit Current (Inc)
- 10 kA
- Rated Cross-Section
- 4 - Multi-Wired 0...25 mm²1 - Solid-Core 25...25 mm²
- Rated Current (In)
- 40 A
- Rated Frequency (f)
- 50 … 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Operational Voltage
- 230 / 400 V AC
- Rated Residual Current
- 100 mA
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 1 kA
- Rated Voltage (Ur)
- 230/400 V
- Standards
- IEC/EN 61008UL 1053
- Type of Residual Current
- A type
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- 480Y / 277 V AC
- Short-Circuit Current Rating (SCCR)
- 100 mA
