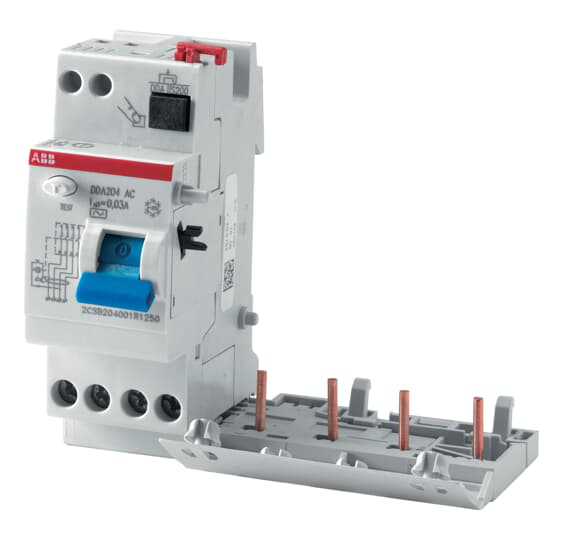

ABB 2CSB204001R1250
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.DDA204 AC-25/0.03 Residual Current Device Block
ABB 2CSB204001R1250 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85363030
- eClass
- V11.0 : 27142210
- ETIM 9
- EC002297 - Residual current circuit breaker (RCCB) module
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 76 mm
- Product Net Height
- 93 mm
- Product Net Weight
- 0.173 kg
- Product Net Width
- 105 mm
Environmental
- Ambient Air Temperature
- Operation -25...55 °C
- Ambient Temperature
- -25...55 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP2X
- Environmental Information
- Refer to RoHS
- REACH Declaration
- 9AKK108467A9482
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 0.1 mm or 1 g - 20 cycles at 5…150…5 Hz
- RoHS Information
- 9AKK106713A5614
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Installation
- Instructions and Manuals
- 9AKK108467A7091
Ordering
- E-Number (Finland)
- 3259814
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.22 kg
- Package Level 1 Units
- box 1 piece
Technical
- Connecting Capacity
- Rigid 16 ... 16 mm²Flexible 16 ... 16 mm²
- Electrical Endurance
- 10000 cycle
- Leakage Current Type
- AC
- Number of Poles
- 4
- Operating Characteristic
- Instantaneous
- Power Loss
- 3 W
- Power Supply Connection
- Arbitrary
- Rated Current (In)
- 25 A
- Rated Frequency (f)
- 50 … 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Operational Voltage
- 230/400 V
- Rated Residual Current
- 30 mA
- Rated Voltage (Ur)
- 230/400 V
- Standards
- IEC/EN 61009 Ann. G
- Type of Residual Current
- AC type
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 ... 0.03 A
