ABB 2CMA193259R1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

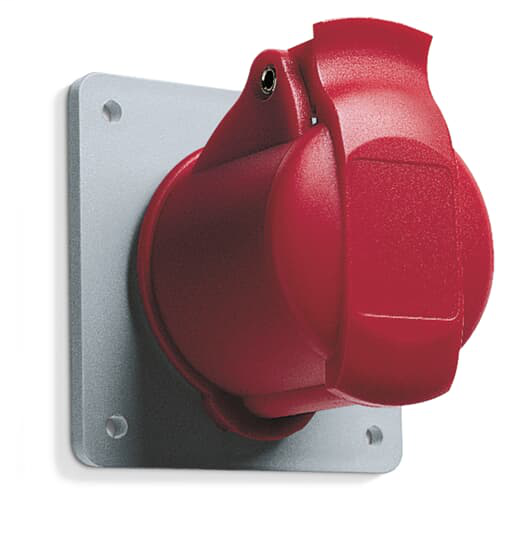

Panel mounted socket, earthing sleeve position 6h, rated current 32A, IP44 splashproof, unified flange, straight, 3-poles+neutral+earth, frequency 50-60 Hz, color code RedSocket-outlet, panel mounting, 6h, 32A, IP44, unified flange, straight, 3P+N+E
ABB 2CMA193259R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+N+E
- Ambient Temperature
- -25 … 40 °C
- Cable Cross-Section
- 2.5 ... 10 mm²
- Cable Diameter
- 13 … 21.5 mm
- Color
- Red
- Connection Type
- Screw
- Degree of Protection
- IP44
- Enclosure Material
- Thermoplastic
- Frequency (f)
- 50 Hz60 Hz
- Function
- Panel mounted socket
- Housing Material
- Plastic (PA)
- Instructions and Manuals
- 2CMC700002D0001
- Invoice Description
- Ind. P&S#432RU6
- Material
- Plastic
- Mounting Holes
- 60-61x60-61
- Mounting Type
- Unified straight flange
- Number of Poles
- 5
- Order Multiple
- 10 piece
- Product Main Type
- ERU
- Product Name
- Panel mounted socket
- Protection Type
- Splashproof
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 32 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Voltage (Ur)
- 200/346 ... 240/415 V
- Recommended Screw Driver
- PH2
- RoHS Date
- L23
- Standards
- IEC 60309-1, -2
- Suitable For
- Socket Outlets for Panel Mounting
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440504
- UNSPSC
- 39121406
Container Information
- Package Level 1 Depth / Length
- 182 mm
- Package Level 1 EAN
- 7392696662598
- Package Level 1 Gross Weight
- 2.4 kg
- Package Level 1 Height
- 378 mm
- Package Level 1 Units
- box 10 piece
- Package Level 1 Width
- 154 mm
- Package Level 2 Units
- 450 piece
Dimensions
- Product Net Depth / Length
- 105 mm
- Product Net Height
- 102 mm
- Product Net Length
- 105 mm
- Product Net Weight
- 0.24 kg
- Product Net Width
- 75 mm
Ordering
- Country of Origin
- Czech Republic (CZ)
- EAN
- 7392696932592
- E-Number (Finland)
- 2421246
- E-Number (Norway)
- 1547353
- E-Number (Sweden)
- E2416660
- Minimum Order Quantity
- 10 piece
Technical
- Tightening Torque
- 1.2 N·m
- Wire Size
- 12 … 10 AWG
Technical UL/CSA
- Ampere Rating UL/CSA
- 32 A
- Tightening Torque UL/CSA
- 10.6 in·lb
