Description

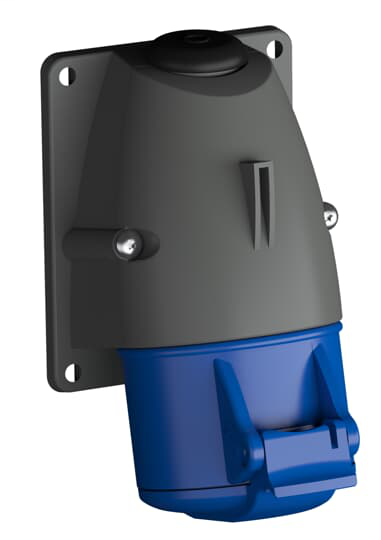

Wall mounted socket, earthing sleeve position 9h, rated current 16A, IP44 splashproof, 3-poles+earth, frequency 50-60 Hz, color code BlueSurface socket-outlet, 9h, 16A, IP44, 3P+E
ABB 2CMA193108R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+E
- Ambient Temperature
- -25 … 40 °C
- Cable Cross-Section
- 1.5 ... 4 mm²
- Cable Diameter
- 18 mm
- Cable Entry Position
- Cable entry, flexible membrane and metric threaded M20 insert for top cable entry.Rear knock-out cable entry.
- Color
- Blue
- Connection Type
- Screw
- Degree of Protection
- IP44
- Enclosure Material
- Thermoplastic
- Frequency (f)
- 50 Hz60 Hz
- Function
- Wall mounted socket
- Housing Material
- Plastic (PA)
- Instructions and Manuals
- 2CMC700002D0001
- Invoice Description
- Ind. P&S#316RS9
- Material
- Plastic
- Mounting Holes
- 91x67
- Mounting Type
- Angled
- Number of Poles
- 4
- Order Multiple
- 10 piece
- Product Main Type
- ERS
- Product Name
- Wall mounted socket
- Protection Type
- Splashproof
- RAL Number
- RAL 7012 - Basalt Grey
- Rated Current (In)
- 16 A
- Rated Voltage (Ur)
- 200 ... 250 V
- Recommended Screw Driver
- PH2
- RoHS Date
- L23
- Standards
- IEC 60309-1, -2
- Suitable For
- Surface Socket Outlets
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440510
- UNSPSC
- 39120000
Container Information
- Package Level 1 Depth / Length
- 182 mm
- Package Level 1 EAN
- 7392696661089
- Package Level 1 Gross Weight
- 2.4 kg
- Package Level 1 Height
- 378 mm
- Package Level 1 Units
- box 10 piece
- Package Level 1 Width
- 154 mm
- Package Level 2 Units
- 450 piece
Dimensions
- Mechanical Drawings
- 9AKK107680A0701
- Product Net Depth / Length
- 132 mm
- Product Net Height
- 79 mm
- Product Net Length
- 132 mm
- Product Net Weight
- 0.24 kg
- Product Net Width
- 79 mm
Ordering
- Country of Origin
- Czech Republic (CZ)
- EAN
- 7392696931083
- E-Number (Finland)
- 2416451
- E-Number (Norway)
- 2416451
- E-Number (Sweden)
- E2416451
- Minimum Order Quantity
- 10 piece
Technical
- Tightening Torque
- 0.8 N·m
- Wire Size
- 14 … 12 AWG
