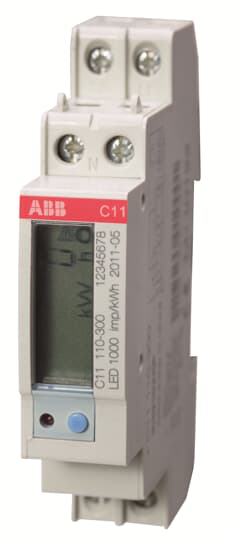

ABB 2CMA170550R1000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Electricity meter, 1 phase, Active energy Cl. 1, Approved according to: IEC 62052-11, IEC 62053-21C11 110-300, Energy meter'Steel', None, Single-phase, 40 A
ABB 2CMA170550R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 90283011
- ETIM 9
- EC001506 - Kilowatt-hour meter
- Object Classification Code
- P
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 65 mm
- Product Net Height
- 111 mm
- Product Net Weight
- 0.066 kg
- Product Net Width
- 17.5 mm
- Size
- 111X17.5X65
- Width in Number of Modular Spacings
- 1
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108467A4138
Environmental
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 2CMC486005D0001
- RoHS Information
- 2CMC486003
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CMC486002M0201
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.123 kg
- Package Level 1 Units
- 1 piece
Technical
- Accuracy
- Active Energy Class ±1%
- Communication Interface
- null
- Connecting Capacity Main Circuit
- 0.5 ... 10 mm²
- Current Rating
- 40 A
- Enclosure Material
- Polycarbonate in transparent front glass and terminal cover. Glass reinforced polycarbonate in housing.
- Function
- Electricity meter
- Measuring Instrument Conformity
- IEC 62053-22
- Meter Type
- Direct connected
- Mounting Type
- DIN-Rail
- Number of Counter Positions
- 6
- Number of Digital In/Outputs
- 1 DO
- Number of Phases
- Single-phase
- Power Consumption (@Pcons)
- 0.22 W
- Pulse Output Rate
- 1000
- Pulse Output Type
- Electrical
- Rated Current (In)
- 40 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Voltage (Ur)
- 230 V
- Standards
- IEC 62053-21IEC 62052-11
- Sub-Function
- Steel
- Type of Indicator
- Digital
