Description

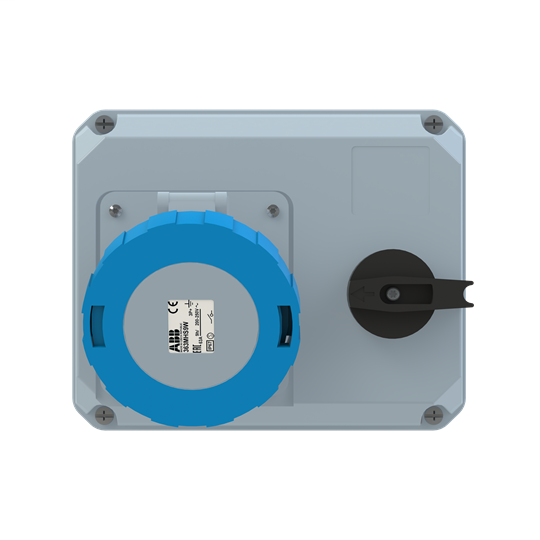

Switched Interlocked Socket Outlet, horisontal, earthing sleeve position 9h, rated current 63A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code BlueSwitched interlocked socket-outlet, 9h, 63A, IP67, 3P+E
ABB 2CMA167901R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+E
- Ambient Temperature
- -25 … 40 °C
- Cable Cross-Section
- 6 ... 25 mm²
- Cable Diameter
- 17 … 35 mm
- Cable Entry Position
- Top and bottom
- Cable Outlets Per Side
- 1xØ32
- Color
- Blue
- Connection Type
- Screw
- Degree of Protection
- IP67
- Enclosure Material
- Thermoplastic polyester (PBT)
- Frequency (f)
- 50 Hz60 Hz
- Function
- Switched interlocked socket outlet, horisontal
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000031M0001
- Instructions and Manuals
- 2CMC000031M0001
- Invoice Description
- Ind. P&S#363MHS9W
- Material
- Plastic
- Mounting Holes
- 152x132
- Mounting Type
- Horizontal
- Number of Poles
- 4
- Order Multiple
- 1 piece
- Product Main Type
- CMHS
- Product Name
- Industrial Switched Interlocked Socket Outlet
- Protection Type
- Switched Interlocked
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 63 A
- Rated Voltage (Ur)
- 200 ... 250 V
- Recommended Screw Driver
- PH2
- RoHS Date
- L23
- Standards
- IEC 60309-1, -2, -4
- Sub-Function
- Cable entry, knock-outs 2xØ32mm
- Suitable For
- Switched Interlocked Socket Outlets, Horisontal
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440510
- UNSPSC
- 39120000
Container Information
- Package Level 1 Depth / Length
- 215 mm
- Package Level 1 EAN
- 7392696679015
- Package Level 1 Gross Weight
- 2 kg
- Package Level 1 Height
- 180 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 180 mm
- Package Level 2 Units
- 84 piece
Dimensions
- Product Net Depth / Length
- 182 mm
- Product Net Height
- 168 mm
- Product Net Length
- 182 mm
- Product Net Weight
- 2 kg
- Product Net Width
- 206 mm
Ordering
- Country of Origin
- Czech Republic (CZ)
- EAN
- 7392696679015
- E-Number (Finland)
- 2417009
- E-Number (Norway)
- 2417009
- E-Number (Sweden)
- 2417009
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- 3.5 N·m
- Wire Size
- 8 … 4 AWG
