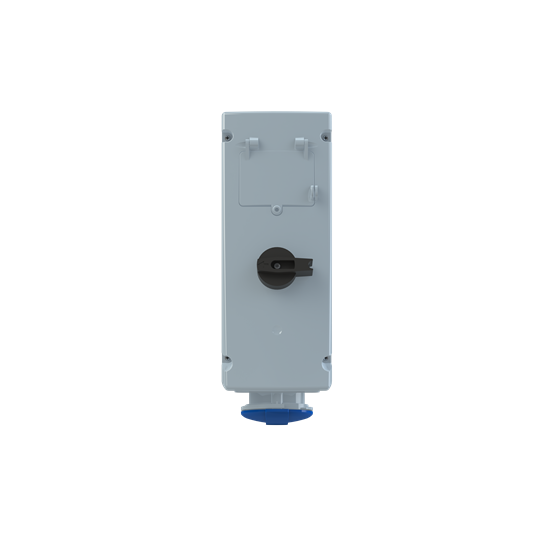

ABB 2CMA167778R1000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Switched Interlocked Socket Outlet with RCD, earthing sleeve position 6h, 30mA, rated current 32A, IP44 splashproof, 2-poles+earth, frequency 50-60 Hz, color code BlueSwitched interlocked socket-outlet with RCD, 6h, 30mA, 32A, IP44, 2P+E
ABB 2CMA167778R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 2P+E
- Ambient Temperature
- -25 ... 40 °C
- Cable Cross-Section
- 2.5 ... 10 mm²
- Cable Diameter
- 13 ... 21.5 mm
- Cable Entry Position
- Top
- Cable Outlets Per Side
- 2xØ25
- Color
- Blue
- Connection Type
- Screw
- Degree of Protection
- IP44
- Frequency (f)
- 50 Hz60 Hz
- Function
- Switched interlocked socket outlet with RCD, 30 mA
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000041M0002
- Instructions and Manuals
- 2CMC000041M0002
- Invoice Description
- Ind. P&S#232MPR6
- Mounting Holes
- 290x100
- Mounting Type
- Vertical
- Number of Poles
- 3
- Number of RCDs
- 1
- Number of RCDs 30mA
- 1
- Order Multiple
- 1 piece
- Product Main Type
- CMPR
- Product Name
- Industrial Switched Interlocked Socket Outlet
- Protection Type
- RCD
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 32 A
- Rated Residual Current
- 30 mA
- Rated Voltage (Ur)
- 200 ... 250 V
- Recommended Screw Driver
- PH2
- Standards
- IEC 60309-1, -2, -4
- Sub-Function
- Cable entry, knock-outs 2xØ25mm
- Suitable For
- Switched Interlocked Socket Outlets with RCD
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440510
Container Information
- Package Level 1 Depth / Length
- 182 mm
- Package Level 1 EAN
- 7392696677783
- Package Level 1 Gross Weight
- 1.9 kg
- Package Level 1 Height
- 378 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 154 mm
- Package Level 2 Depth / Length
- 1200 mm
- Package Level 2 EAN
- 7392696074698
- Package Level 2 Gross Weight
- 105.5 kg
- Package Level 2 Height
- 900 mm
- Package Level 2 Units
- pallet (lift) 45 piece
- Package Level 2 Width
- 800 mm
Dimensions
- Product Net Height
- 183 mm
- Product Net Weight
- 1.77 kg
- Product Net Width
- 130 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Country of Origin
- Czech Republic (CZ)
- E-Number (Finland)
- 2421972
- E-Number (Norway)
- 2416889
- E-Number (Sweden)
- E2416889
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- WireClamp1.2 N·m
- Wire Size
- 12 ... 10 AWG
