ABB 2CMA167274R1000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

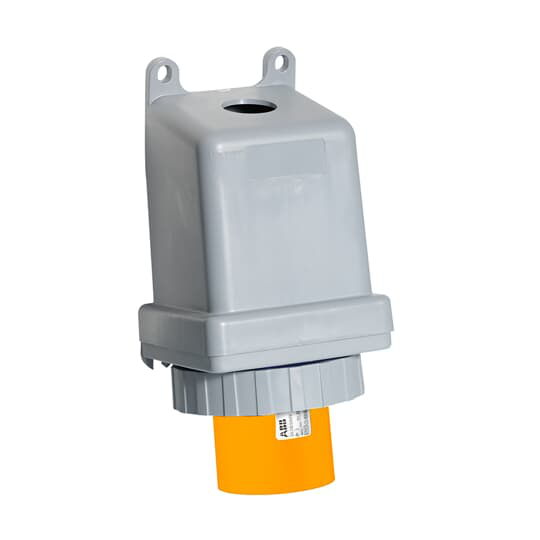

Surface Inlet, earthing sleeve position 4h, rated current 125A, IP67 watertight, 2-poles+earth, frequency 50-60 Hz, color code YellowInd. P&S#2125BS4W
ABB 2CMA167274R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 2P+E
- Ambient Temperature
- -25 … 40 °C
- Cable Cross-Section
- 16 ... 70 mm²
- Color
- Yellow
- Connection Type
- Screw
- Degree of Protection
- IP67IP69
- Design
- Surface mounted plug
- Enclosure Material
- Thermoplastic polyester (PBT)
- Frequency (f)
- 50 Hz60 Hz
- Function
- Surface inlet
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000040M0001
- Instructions and Manuals
- 2CMC000040M0001
- Invoice Description
- Ind. P&S#2125BS4W
- Material
- Plastic
- Mounting Holes
- 188x85
- Number of Poles
- 3
- Order Multiple
- 1 piece
- Product Main Type
- TBS
- Product Name
- Wall mounted inlet
- Protection Type
- Watertight
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 125 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Voltage (Ur)
- 100 ... 130 V
- Recommended Screw Driver
- PH2
- RoHS Date
- L23
- Standards
- IEC 60309-1, -2
- Suitable For
- Surface Inlets
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440519
- UNSPSC
- 39120000
Container Information
- Package Level 1 Depth / Length
- 182 mm
- Package Level 1 EAN
- 7392696672740
- Package Level 1 Gross Weight
- 4 kg
- Package Level 1 Height
- 378 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 154 mm
- Package Level 2 Units
- 45 piece
Dimensions
- Product Net Depth / Length
- 269 mm
- Product Net Height
- 161 mm
- Product Net Length
- 269 mm
- Product Net Weight
- 4 kg
- Product Net Width
- 145 mm
Ordering
- Country of Origin
- Czech Republic (CZ)
- EAN
- 7392696672740
- E-Number (Finland)
- 2420049
- E-Number (Norway)
- 2417275
- E-Number (Sweden)
- 2417275
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- 5.6 N·m
- Wire Size
- 3 … 1 AWG
Technical UL/CSA
- Ampere Rating UL/CSA
- 125 A
- Tightening Torque UL/CSA
- 50 in·lb
