ABB 2CMA167246R1000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

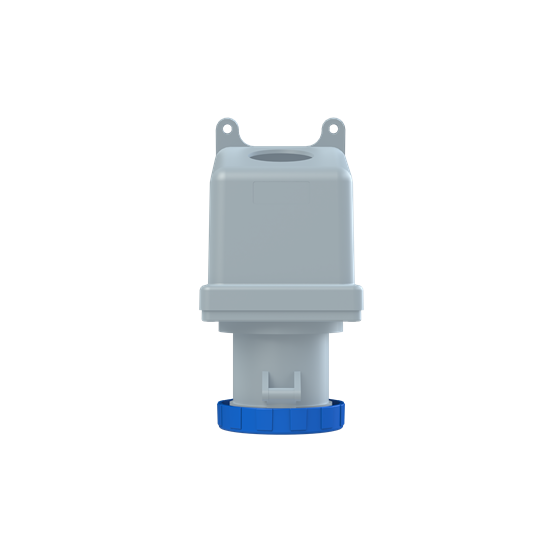

Surface socket-outlet, earthing sleeve position 6h, rated current 125A, IP67 watertight, 2-poles+earth, frequency 50-60 Hz, color code Blue2125RS6WWall mounted socket
ABB 2CMA167246R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 2P+E
- Ambient Temperature
- -25 ... 40 °C
- Cable Cross-Section
- 16 ... 70 mm²
- Cable Entry Position
- Cable entry Ø 50mm
- Color
- Blue
- Connection Type
- Screw
- Degree of Protection
- IP67IP69
- Frequency (f)
- 50 Hz60 Hz
- Function
- Surface socket outlet
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000038M0001
- Instructions and Manuals
- 2CMC000038M0001
- Invoice Description
- Ind. P&S#2125RS6W
- Mounting Holes
- 188x102
- Number of Poles
- 3
- Order Multiple
- 1 piece
- Product Main Type
- TRS
- Product Name
- Wall mounted socket
- Protection Type
- Watertight
- RAL Number
- RAL 7012 - Basalt Grey
- Rated Current (In)
- 125 A
- Rated Voltage (Ur)
- 200 ... 250 V
- Recommended Screw Driver
- PH2
- Standards
- IEC 60309-1, -2
- Suitable For
- Surface Socket Outlets
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440510
Container Information
- Package Level 1 Depth / Length
- 182 mm
- Package Level 1 EAN
- 7392696672467
- Package Level 1 Gross Weight
- 1.59 kg
- Package Level 1 Height
- 378 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 154 mm
- Package Level 2 Depth / Length
- 1200 mm
- Package Level 2 EAN
- 7392696072519
- Package Level 2 Gross Weight
- 91.55 kg
- Package Level 2 Height
- 900 mm
- Package Level 2 Units
- pallet (lift) 45 piece
- Package Level 2 Width
- 800 mm
Dimensions
- Mechanical Drawings
- 9AKK107991A3849
- Product Net Height
- 282 mm
- Product Net Weight
- 1.450 kg
- Product Net Width
- 145 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Country of Origin
- Czech Republic (CZ)
- E-Number (Finland)
- 2421241
- E-Number (Norway)
- 2416587
- E-Number (Sweden)
- E2416587
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- WireClamp5.6 N·m
- Wire Size
- 3 ... 1 AWG
