Description

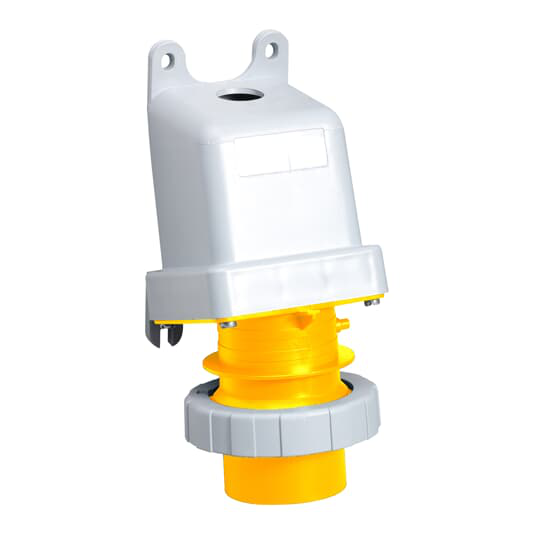

Surface Inlet, earthing sleeve position 4h, rated current 16A, IP67 watertight, 3-poles+earth, frequency 50-60 Hz, color code Yellow316BS4WWall mounted inlet
ABB 2CMA167056R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+E
- Ambient Temperature
- -25 ... 40 °C
- Cable Cross-Section
- 1.5 ... 4 mm²
- Cable Diameter
- 28.3 mm
- Cable Entry Position
- Cable entry Ø25mm
- Color
- Yellow
- Connection Type
- Screw
- Degree of Protection
- IP67IP69
- Design
- Surface mounted plug
- Frequency (f)
- 50 Hz60 Hz
- Function
- Surface inlet
- Housing Material
- Thermoplastic (PBT)
- Instructions and Manuals
- 2CMC700014C0016
- Invoice Description
- Ind. P&S#316BS4W
- Mounting Holes
- 60x148,2
- Number of Poles
- 4
- Order Multiple
- 1 piece
- Product Main Type
- TBS
- Product Name
- Wall mounted inlet
- Protection Type
- Watertight
- RAL Number
- RAL 7012 - Basalt Grey
- Rated Current (In)
- 16 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Voltage (Ur)
- 100 ... 130 V
- Recommended Screw Driver
- PH2
- Standards
- IEC 60309-1, -2
- Suitable For
- Surface Inlets
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440519
Container Information
- Package Level 1 Depth / Length
- 120 mm
- Package Level 1 EAN
- 7392696670562
- Package Level 1 Gross Weight
- 0.41 kg
- Package Level 1 Height
- 265 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 152 mm
- Package Level 2 Depth / Length
- 1200 mm
- Package Level 2 EAN
- 7392696070980
- Package Level 2 Gross Weight
- 71.25 kg
- Package Level 2 Height
- 900 mm
- Package Level 2 Units
- pallet (lift) 125 piece
- Package Level 2 Width
- 800 mm
Dimensions
- Mechanical Drawings
- 9AKK107680A0031
- Product Net Height
- 132 mm
- Product Net Weight
- 0.41 kg
- Product Net Width
- 99 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Country of Origin
- Czech Republic (CZ)
- E-Number (Finland)
- 2420196
- E-Number (Norway)
- 2417219
- E-Number (Sweden)
- 2417219
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- WireClamp0.8 N·m
- Wire Size
- 14 ... 12 AWG
