Description

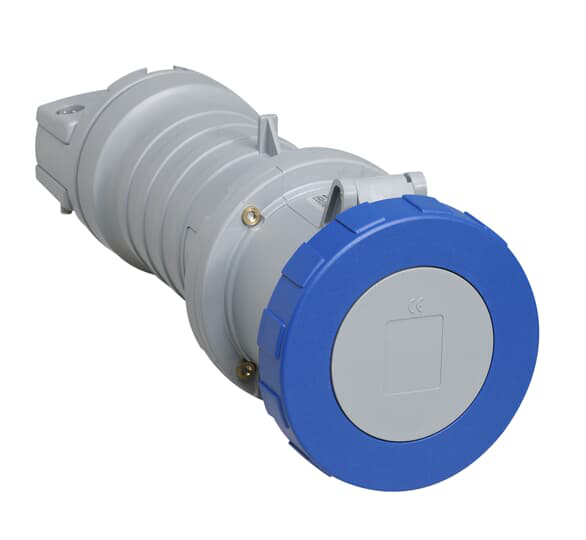

Connector, earthing sleeve position 9h, rated current 125A, IP67 watertight, 3-poles+neutral+earth, frequency 50-60 Hz, color code BlueInd. P&S#4125C9W
ABB 2CMA166940R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+N+E
- Ambient Temperature
- -25 ... 40 °C
- Cable Cross-Section
- 16 ... 50 mm²
- Cable Diameter
- 24 ... 48 mm
- Cable Entry Position
- Cable entry, compression gland, internal and external cable clamp
- Color
- Blue
- Connection Type
- Screw
- Degree of Protection
- IP67IP69
- Frequency (f)
- 50 Hz60 Hz
- Function
- Connector
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000038M0001
- Instructions and Manuals
- 2CMC000038M0001
- Invoice Description
- Ind. P&S#4125C9W
- Number of Poles
- 5
- Order Multiple
- 1 piece
- Product Main Type
- TC
- Product Name
- Industrial Connector
- Protection Type
- Watertight
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 125 A
- Rated Voltage (Ur)
- 120/208 ... 144/250 V
- Recommended Screw Driver
- PH2
- Standards
- IEC 60309-1, -2
- Suitable For
- Connectors
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440509
Container Information
- Package Level 1 Depth / Length
- 158 mm
- Package Level 1 EAN
- 7392696669405
- Package Level 1 Gross Weight
- 1.73 kg
- Package Level 1 Height
- 345 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 138 mm
- Package Level 2 Depth / Length
- 1200 mm
- Package Level 2 EAN
- 7392696070690
- Package Level 2 Gross Weight
- 134.18 kg
- Package Level 2 Height
- 900 mm
- Package Level 2 Units
- pallet (lift) 66 piece
- Package Level 2 Width
- 800 mm
Dimensions
- Mechanical Drawings
- 9AKK107492A4189
- Product Net Height
- 123 mm
- Product Net Weight
- 1.63 kg
- Product Net Width
- 119 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Country of Origin
- Czech Republic (CZ)
- E-Number (Finland)
- 2416436
- E-Number (Norway)
- 2416436
- E-Number (Sweden)
- 2416436
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- WireClamp5.6 N·m
- Wire Size
- 3 ... 1 AWG
