ABB 2CMA166764R1000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

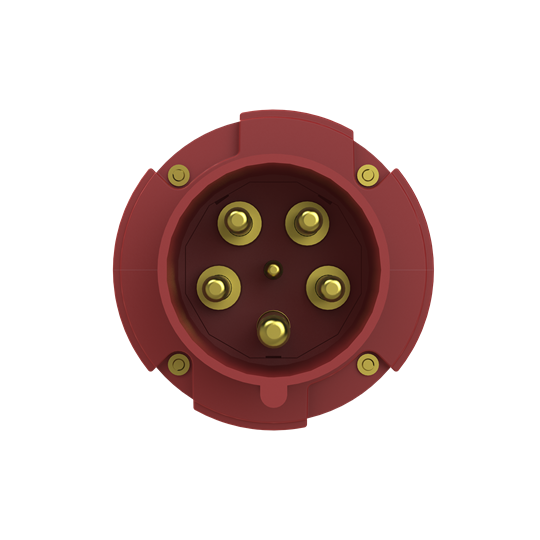

Plug, earthing sleeve position 6h, rated current 63A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code RedInd. P&S#463P6
ABB 2CMA166764R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- Additional Information
- 3P+N+E
- Ambient Temperature
- -25 ... 40 °C
- Cable Cross-Section
- 4 ... 16 mm²
- Cable Diameter
- 17 ... 35 mm
- Cable Entry Position
- Cable entry, membrane
- Color
- Red
- Connection Type
- Screw
- Degree of Protection
- IP44
- Frequency (f)
- 50 Hz60 Hz
- Function
- Plug
- Housing Material
- Thermoplastic (PBT)
- Installation Manual
- 2CMC000040M0001
- Instructions and Manuals
- 2CMC000040M0001
- Invoice Description
- Ind. P&S#463P6
- Number of Poles
- 5
- Order Multiple
- 1 piece
- Product Main Type
- TP
- Product Name
- Industrial Plug
- Protection Type
- Splashproof
- RAL Number
- RAL 7001 - Silver Grey
- Rated Current (In)
- 63 A
- Rated Voltage (Ur)
- 200/346 ... 240/415 V
- Recommended Screw Driver
- PH2
- Replacement Product ID (NEW)
- 2CMA106093R1000
- Standards
- IEC 60309-1, -2
- Suitable For
- Plugs
- Suitable for Product Class
- IEC Industrial Plugs and Sockets
Classifications
- eClass
- 27440509
Container Information
- Package Level 1 Depth / Length
- 114 mm
- Package Level 1 EAN
- 7392696667647
- Package Level 1 Gross Weight
- 0.72 kg
- Package Level 1 Height
- 230 mm
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 114 mm
- Package Level 2 Units
- pallet (lift) 171 piece
Dimensions
- Product Net Height
- 103 mm
- Product Net Weight
- 0.64 kg
- Product Net Width
- 103 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Country of Origin
- Czech Republic (CZ)
- E-Number (Finland)
- 2421626
- E-Number (Norway)
- 1565183
- E-Number (Sweden)
- E2416231
- Minimum Order Quantity
- 1 piece
Technical
- Tightening Torque
- WireClamp3.5 N·m
- Wire Size
- 8 ... 4 AWG
