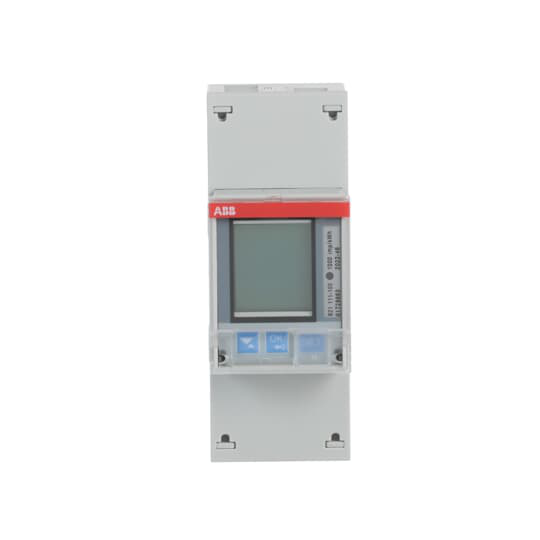

ABB 2CMA100149R1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.B21 111-100, Energy meter'Steel', IR port, Single-phase, 5 A
ABB 2CMA100149R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 90283011
- eClass
- V11.0 : 27142316
- ETIM 9
- EC001506 - Kilowatt-hour meter
- Object Classification Code
- P
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 65 mm
- Product Net Height
- 26.5 mm
- Product Net Weight
- 0.14 kg
- Product Net Width
- 35 mm
- Size
- 97X35X65
- Width in Number of Modular Spacings
- 2
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108467A4138
Environmental
- Ambient Air Temperature
- Operation -40 ... 70 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 2CMC485004D0001
- RoHS Information
- 2CMC485005
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 2CMC485019M0201
Ordering
- E-Number (Finland)
- 6625026
- E-Number (Sweden)
- 0900029
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.19 kg
- Package Level 1 Units
- box 1 piece
Technical
- Accuracy
- Active Energy Class B MID (±1%)
- Communication Interface
- IR port
- Connecting Capacity Main Circuit
- 1 ... 25 mm²
- Current Rating
- 5 A
- Enclosure Material
- Polycarbonate in transparent front glass. Glass reinforcedpolycarbonate in bottom case and upper case. Polycarbonatein terminal cover.
- Function
- Electricity meter
- I/O Option
- 1 digital output
- Measuring Instrument Conformity
- Measurement Instrument Directive (MID)
- Meter Tariff Rating
- One-Tariff
- Meter Type
- Direct connected
- Mounting Type
- DIN-Rail
- Number of Counter Positions
- 7
- Number of Digital In/Outputs
- 1 DO
- Number of Phases
- Single-phase
- Number of Poles
- 1
- Power Consumption (@Pcons)
- 0.414 W
- Pulse Output Rate
- 1-999999
- Pulse Output Type
- Electrical
- Rated Current (In)
- 5 AMaximum 65 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Voltage (Ur)
- 220-240 V
- Standards
- EN 50470-1
- Sub-Function
- Steel
- Type of Indicator
- Digital
- Voltage Range
- 176…276 V
