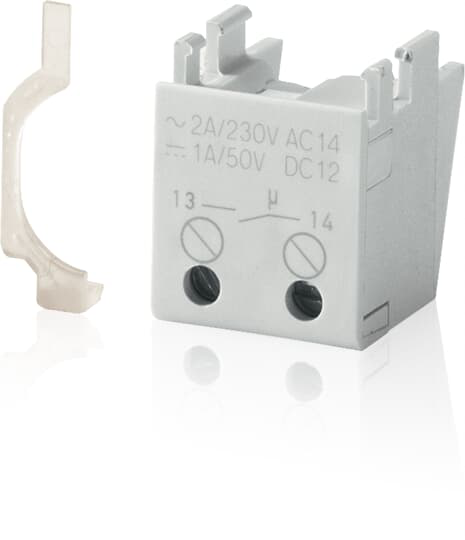

ABB 2CDS200970R0002
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Indication of the position of the device’s contacts. S2C-H01 is the opening device and S2C-H10 the closing device. Compared to the S2C-S/H6R, the S2C-H10 entails less cost and many practical benefits. It can be fitted at the bottom of the MCBs and RCDs and is thus much more convenient for retrofitting than the side-mounted device because not all MCBs have to be removed from the rail first. And even when the MCBs affected are connected to a busbar, they do not have to be removed. 50% space can be saved. Suitable for MCBs S200 series, electronic RCBOs DSE200 series.S2C-H10 Auxiliary Contact
ABB 2CDS200970R0002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 50 80
- eClass
- V11.0 : 27143502
- EPLAN Function Definition
- NO contact / NO contact, 2 connection points / NO auxiliary contact m3_m4
- ETIM 9
- EC001286 - Auxiliary device for distribution board devices
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 23.1 mm
- Product Net Height
- 21.2 mm
- Product Net Weight
- 0.008 kg
- Product Net Width
- 17.4 mm
Environmental
- Environmental Information
- 2CDK400571D0201
- RoHS Information
- 2CDK440030D2703
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- GHS2007009P0008
Ordering
- E-Number (Sweden)
- 2102505
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.012 kg
- Package Level 1 Units
- 1 piece
- Replacement Product ID (NEW)
- 2CDS200970R0032
Technical
- Accessory Type
- Auxiliary Contact
- Function
- Auxiliary Contact
- Mounting Position
- bottom
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Number of Auxiliary Contacts NC
- 0
- Number of Auxiliary Contacts NO
- 1
- Power Loss
- 0.5 W
- Standards
- CSA 22.2 No. 235GB/T 14048.5UL 1077
- Suitable For
- S200S200MS200MTS200MUCS200PS200SSD200
- Suitable for Product Class
- Miniature Circuit BreakerResidual Current Device
